RoPA Records

The RoPA Records feature lets Product Owners author and maintain a Record of Processing Activities (RoPA) for every deployed process bundle, fulfilling the mandatory GDPR Article 30 obligation for government processing activities. Records are stored in PostgreSQL, linked to their BPMN process via ronl:ropaRef, and published to a public-facing website isolated from the LDE stack.

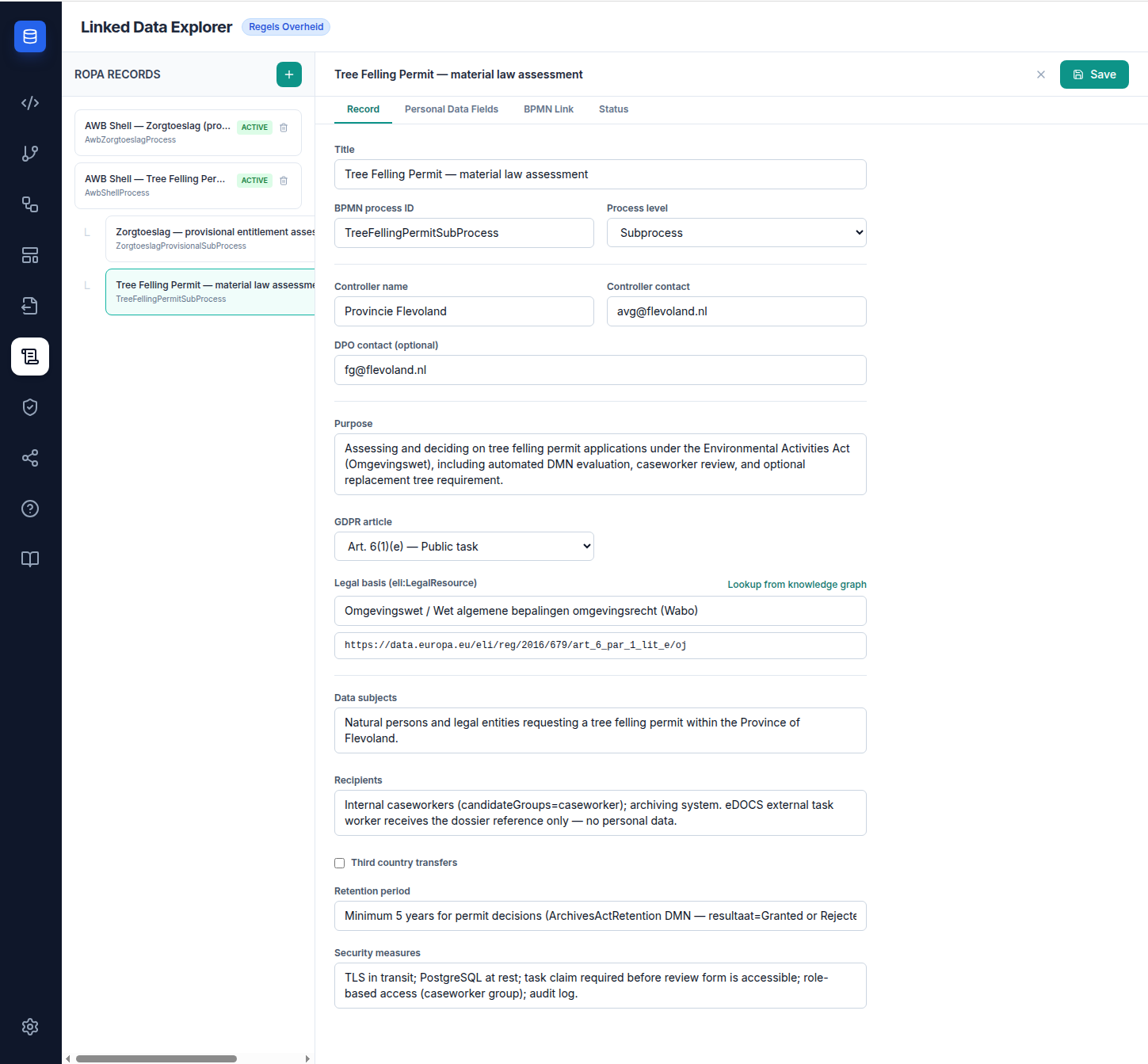

Screenshot: RoPA Records view showing the left panel list with four records grouped as two shells and two subprocesses, and the Record tab of the RopaRecordEditor open on the right with all GDPR Art. 30 fields filled in for the Tree Felling Permit subprocess

RoPA Records — record list (left) and Record tab editor (right)

Two-panel layout

The RoPA Records view follows the same two-panel convention as the Form Editor:

  • Left panel — Record list. All RoPA records grouped as shell processes first, subprocesses second, each with a DRAFT / ACTIVE / ARCHIVED status badge and a delete control.
  • Right panel — Record editor. Four tabs covering the full GDPR Art. 30 data model, BPMN linkage, and lifecycle management.

Record list

Each entry in the list shows the record title, the bpmnProcessId it covers, and its current status. Shell records are top-level entries; subprocess records are indented beneath their parent shell with a tree connector — mirroring the hierarchy in the BPMN Modeler process list.

Screenshot: RoPA Records left panel showing two shell records (AWB Shell Tree Felling Permit and AWB Shell Zorgtoeslag) each with two subprocess records indented beneath them, all carrying ACTIVE badges

Record list — shell/subprocess hierarchy with status badges

Clicking a record opens it in the editor. The + button in the panel header creates a new blank record.

Record tab

The Record tab collects all GDPR Article 30 mandatory fields:

Field Description
Title Human-readable name for the processing activity
BPMN process ID The <process id="..."> value from the BPMN XML — used to link the record to its process
Process level Shell or Subprocess — reflects the AWB two-layer architecture
Controller name Name of the data controller organisation
Controller contact Contact address for the controller
DPO contact Data Protection Officer contact (optional)
Purpose Description of why the personal data is processed
GDPR article Legal basis from the dropdown — Art. 6(1)(a) through (f)
Legal basis eli:LegalResource URI and human-readable label
Data subjects Categories of persons whose data is processed
Recipients Who receives the data, including internal and external parties
Third country transfers Toggle — reveals a detail field if transfers exist
Retention period How long data is kept and under which statutory basis
Security measures Technical and organisational measures in place

The Lookup from knowledge graph button fires a SPARQL query against the TriplyDB RONL endpoint to retrieve all eli:LegalResource resources linked to cpsv:PublicService entries. Results appear as a pick-list; selecting one populates both the URI and label fields automatically.

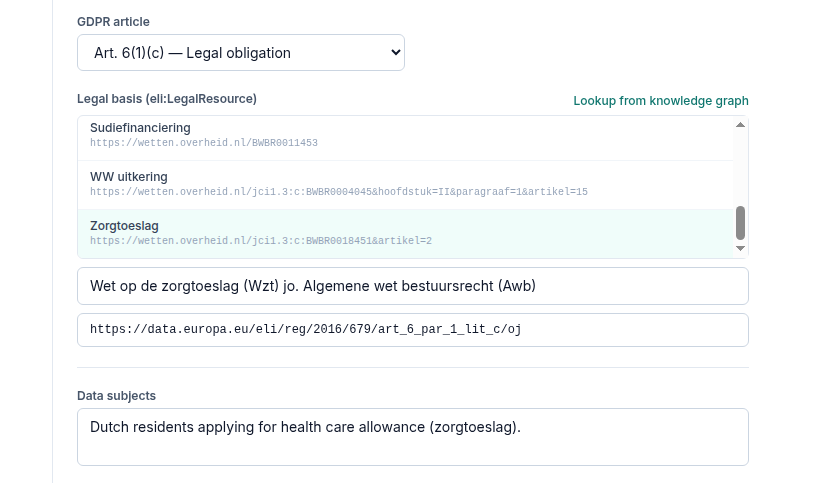

Screenshot: Record tab showing the legal basis section with the Lookup button highlighted and a dropdown pick-list of legal resources below it, with Wet op de zorgtoeslag selected

Legal basis lookup — results from the RONL knowledge graph

Personal Data Fields tab

This tab lists every personal data field collected by the forms linked to this process. The Hydrate from forms button reads all camunda:formRef values from the process XML, loads the matching form schemas from the Form Editor storage, and appends one row per form component that has a key property — skipping headings, text blocks, and buttons.

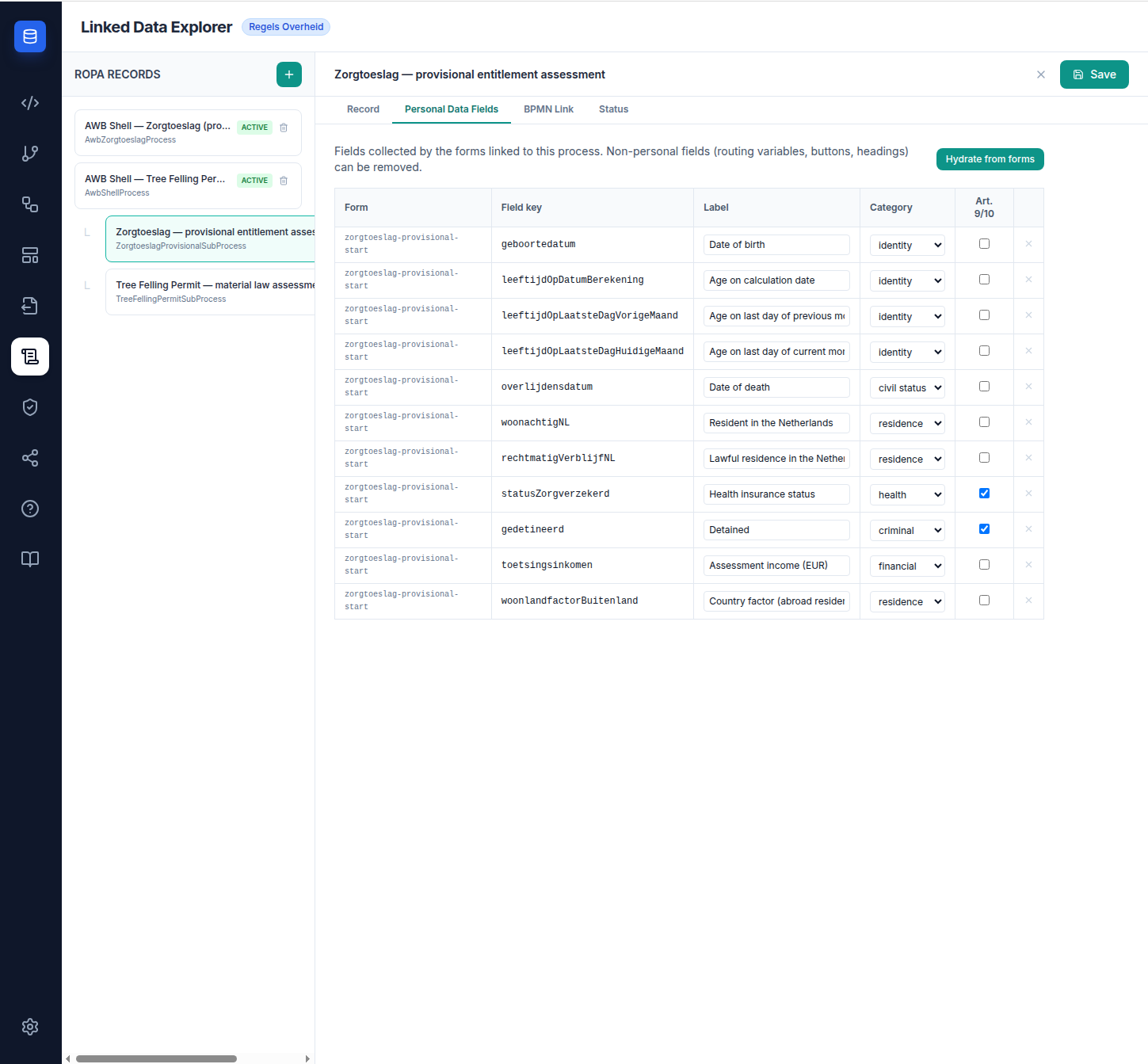

Screenshot: Personal Data Fields tab showing a table with columns for Form, Field key, Label, Category, and Art. 9/10, populated with the zorgtoeslag-provisional-start form fields including statusZorgverzekerd and gedetineerd marked as Art. 9/10 special categories

Personal Data Fields — hydrated from the zorgtoeslag-provisional-start form

For each field the Product Owner classifies:

  • Data category — identity, financial, residence, health, civil status, criminal, or other
  • Art. 9/10 — checkbox for health data (Art. 9) and criminal data (Art. 10) — renders as a red badge on the public site

Non-personal fields (routing variables, computed outputs) can be removed from the table using the × button on each row.

The BPMN Link tab writes ronl:ropaRef into the process XML, formally linking the record to its BPMN definition. The record must be saved first so it has a UUID.

Screenshot: BPMN Link tab showing the BPMN process ID, the RoPA record ID, and the current ronl:ropaRef in BPMN XML field showing a matching UUID with a green tick and Linked label, and the Write ronl:ropaRef to BPMN button below

BPMN Link tab — record linked, UUID matches

Clicking Write ronl:ropaRef to BPMN injects the attribute into the process XML and saves via BpmnService. If the xmlns:ronl namespace declaration is absent from the <definitions> element, it is added automatically.

The status indicator shows three states:

  • Not linked — no ronl:ropaRef present in the XML
  • Linked (green) — ronl:ropaRef matches this record's ID
  • Points to a different record (amber) — the XML has a ronl:ropaRef but it references a different record ID

Status tab

The Status tab controls the publication lifecycle of the record.

Status Meaning
Draft Internal only — not returned by the public endpoint
Active Publicly visible via GET /v1/ropa/public — appears on the public site
Archived Hidden from public site — retained for audit purposes

Activating a record shows a confirmation dialog: "Activating this record will make it publicly visible on ropa.flevoland.nl. Continue?" Status changes take effect after saving the record with the Save button in the top bar.

RoPA Selector in the BPMN Modeler

When a process is open in the BPMN Modeler, a RoPA Record panel appears pinned to the bottom of the process list — below the scrollable card list. It shows a dropdown of all available RoPA records and writes ronl:ropaRef directly into the process XML on selection, without requiring any canvas element to be selected.

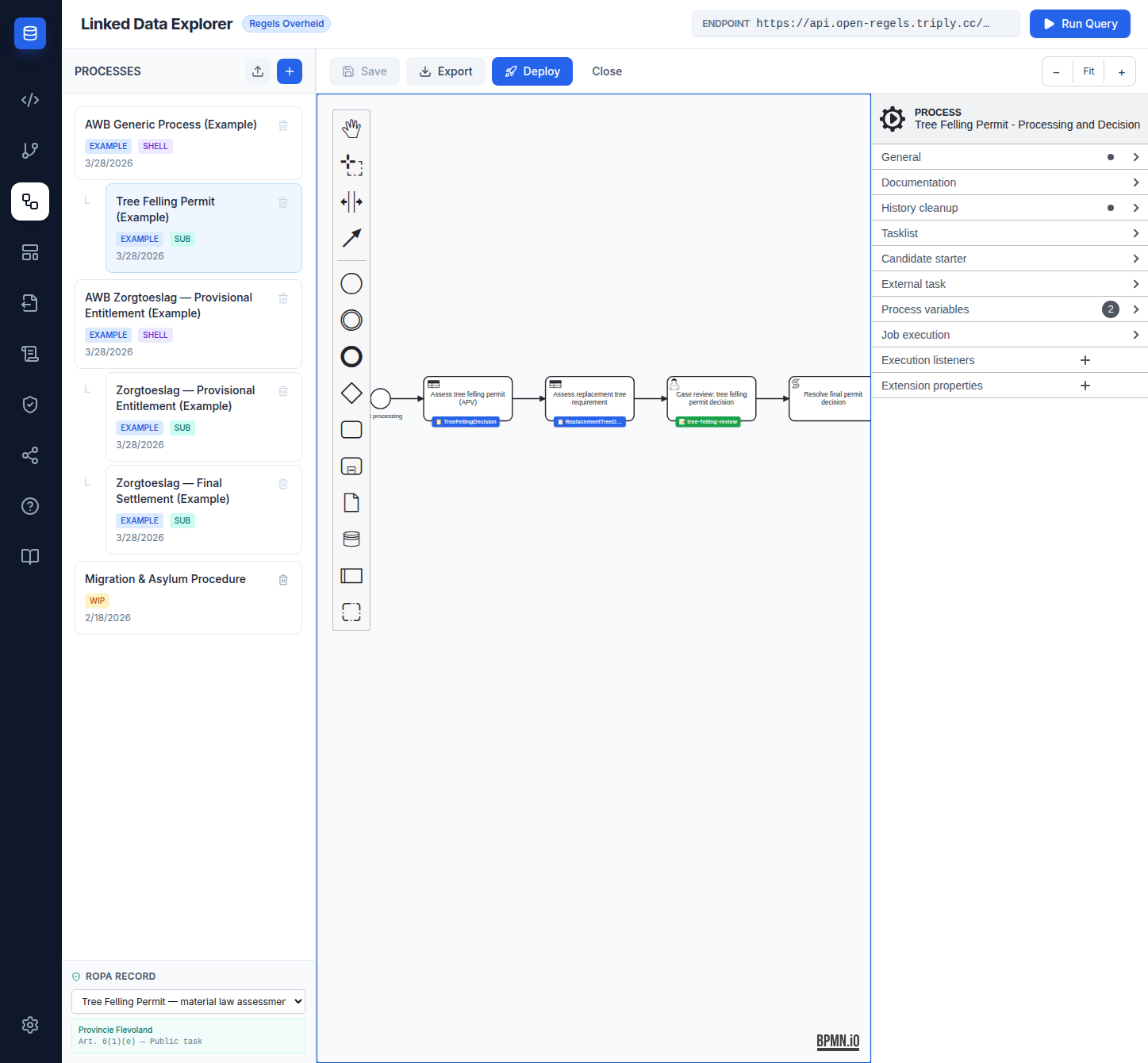

Screenshot: BPMN Modeler process list with the RoPA Record panel visible at the bottom, showing the dropdown with AWB Shell Tree Felling Permit selected and a teal info card below showing the controller name and GDPR article

RoPA Record selector — pinned to the bottom of the BPMN Modeler process list

Deploy modal warning

When deploying a bundle to Operaton, the deploy modal checks whether ronl:ropaRef is present on the process element. If absent, an amber warning is shown between the resource list and the resource count:

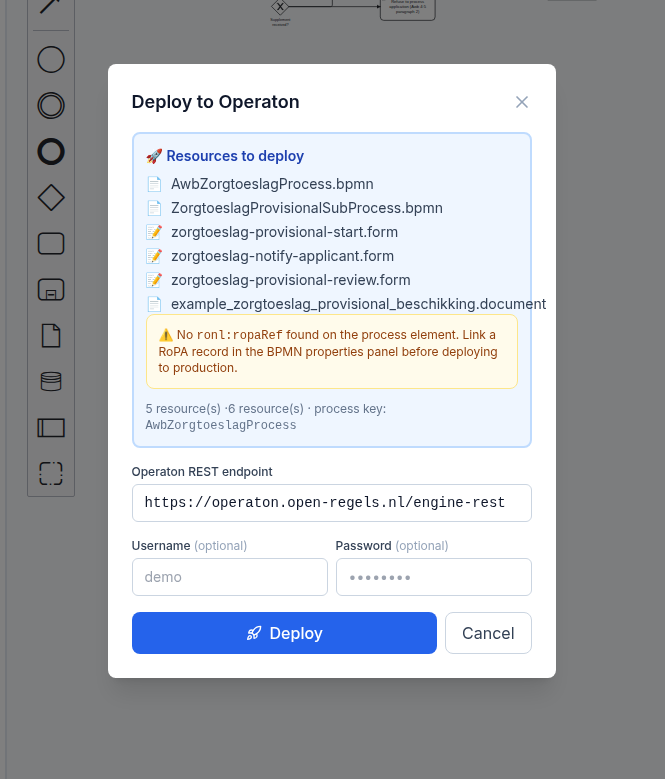

Screenshot: Deploy modal showing the resource list with BPMN and form files, followed by an amber warning panel reading No ronl:ropaRef found on the process element. Link a RoPA record in the BPMN properties panel before deploying to production.

Deploy modal — amber warning when no RoPA record is linked

The warning is non-blocking — the Deploy button remains active. It is intended to prompt the Product Owner to complete the RoPA record before promoting to production.

Public website

Active RoPA records are served from a CORS-open public endpoint and rendered on a dedicated static site ropa.open-regels.nl deployed separately from the LDE. The site displays collapsible cards — one per record — with all GDPR Art. 30 fields including the personal data fields table with colour-coded data categories and Art. 9/10 flags.

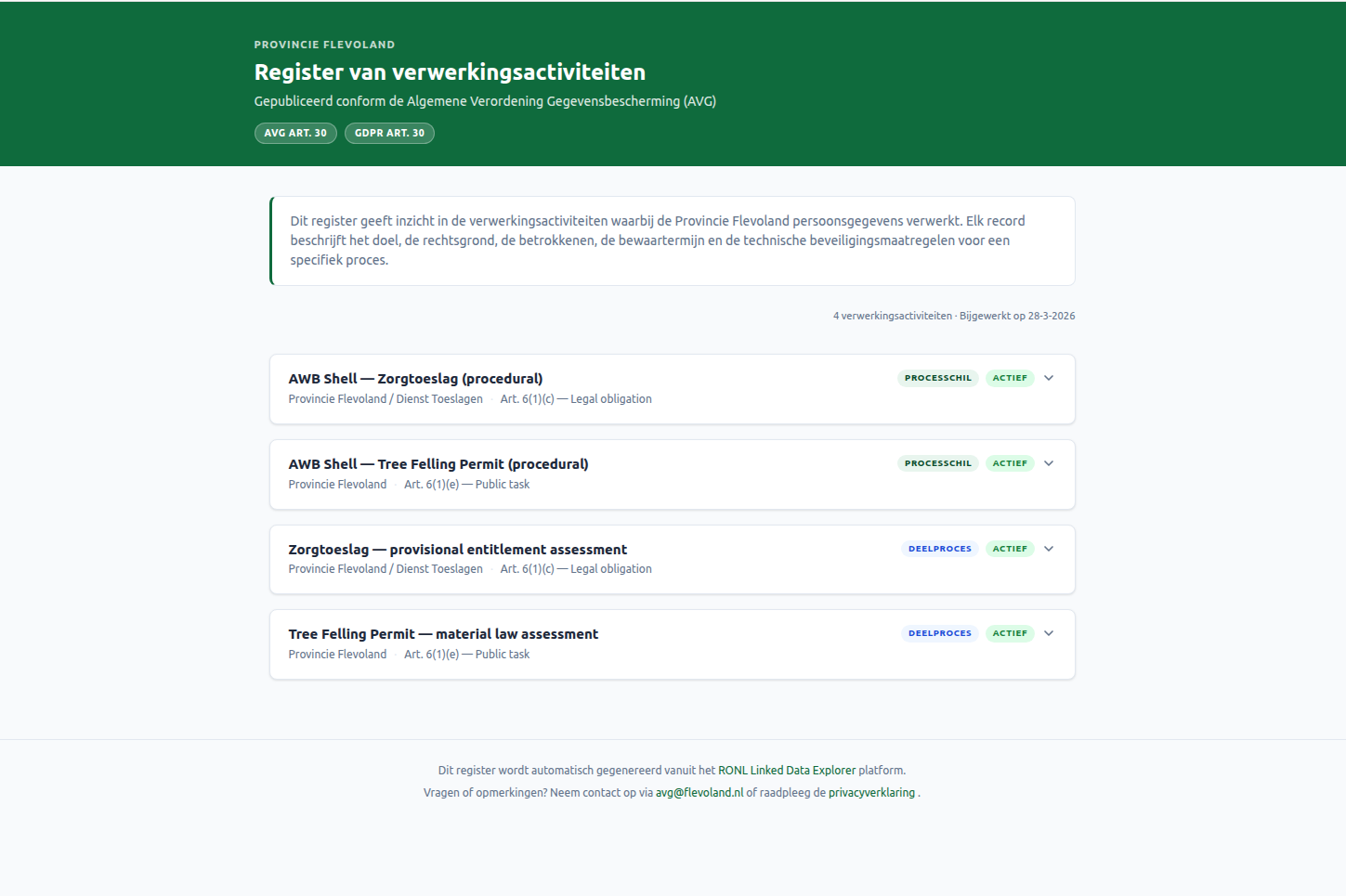

Screenshot: ropa.flevoland.nl public site showing four collapsible record cards — AWB Shell Zorgtoeslag (Processchil, Actief), AWB Shell Tree Felling Permit (Processchil, Actief), Zorgtoeslag provisional entitlement assessment (Deelproces, Actief), Tree Felling Permit material law assessment (Deelproces, Actief)

Public RoPA site — four active records for Provincie Flevoland

See RoPA Records developer docs for the API endpoint, database schema, and public site deployment.
