RONL Business API

Serves as a reference for implementing a compliant, secure, and reliable BPMN service using open-source components.

🧪 Current deployment: acc.mijn.open-regels.nl — Province of Flevoland, acceptance environment

Deployed on Azure Web Apps TypeScript React Vite Node.js Express Keycloak PostgreSQL Redis Operaton Docker Tailwind CSS License

What is the RONL Business API?

The RONL Business API implements the Business API Layer pattern: a security and business-logic layer that sits between an IAM system and the Operaton BPMN engine, exposing scoped capabilities — processes, tasks, forms, decisions — rather than raw engine access.

It is deployed for the Province of Flevoland, currently on the acceptance environment. Three surfaces put its capabilities to work: a signed-in werkomgeving where provincial staff work through role-scoped boards, a public knowledge base reachable with no login, and a public cockpit demo running on demonstration data with no backend behind it. See Getting Started for how these surfaces are organised, and Features for the capabilities themselves.

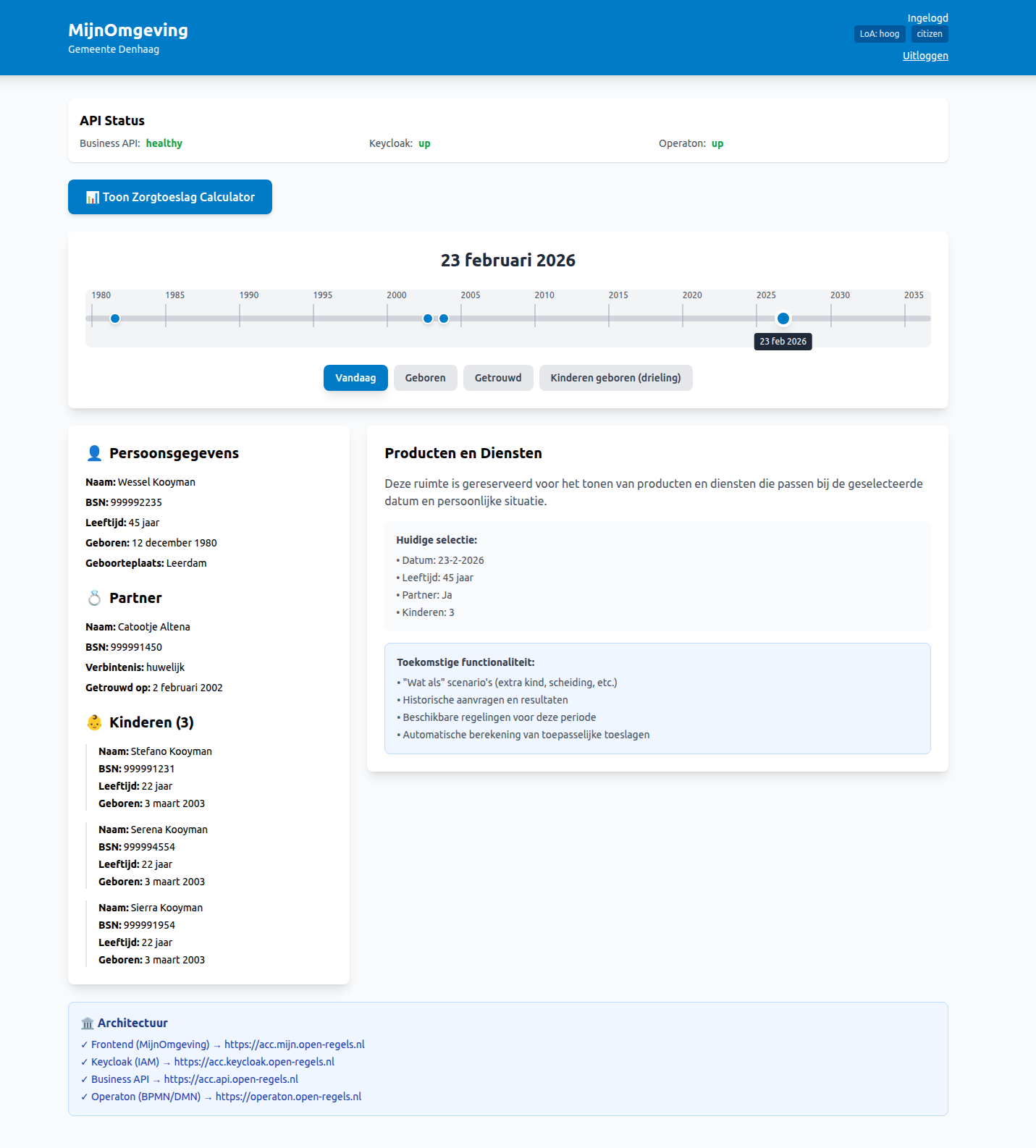

Screenshot: RONL Business API Main UI

Example dashboard MijnOmgeving showing Timeline View

What it does

Instead of exposing Operaton's REST API directly to portal frontends, RONL Business API provides:

  • Secure OIDC/JWT token validation against Keycloak
  • Multi-tenant isolation as a platform mechanism — Operaton native tenant-ids and tenant-scoped queries keep each organisation's data apart, so the same deployment can serve more than one organisation without them seeing each other's data
  • Claims mapping from JWT to BPMN process variables
  • Role-based authorization (citizen, caseworker, admin)
  • Compliance-grade audit logging (BIO, NEN 7510, AVG/GDPR)
  • A clean, versioned REST API (/v1/*) following the Dutch API Design Rules

Architecture at a glance

User → Portal → Keycloak IAM → Business API → Operaton BPMN Engine

The system is hosted across two platforms. Azure hosts the stateless application layer (frontend, backend, PostgreSQL, Redis). A VM at open-regels.nl hosts the services requiring deep customisation or full control (Keycloak, Operaton, Caddy).

Environments

ACC is the environment of record for this documentation — the Province of Flevoland deployment currently runs there. A production environment is also configured in the codebase's deployment workflows:

Environment Frontend Backend Keycloak
ACC https://acc.mijn.open-regels.nl https://acc.api.open-regels.nl https://acc.keycloak.open-regels.nl
Production https://mijn.open-regels.nl https://api.open-regels.nl https://keycloak.open-regels.nl

Technology stack

Layer Technology
Frontend React 18, TypeScript, Vite, CSS Custom Properties
Backend Node.js 20, Express 4, TypeScript
Authentication Keycloak 23, OIDC Authorization Code Flow
Business rules Operaton BPMN/DMN engine
Database Azure PostgreSQL Flexible Server (audit logs)
Cache Azure Cache for Redis (JWKS, sessions)
Hosting Azure Static Web Apps (frontend), Azure App Service (backend)
IAM/BPMN hosting VM — Caddy, Docker Compose
CI/CD GitHub Actions
License EUPL-1.2

Documentation sections

  • Features — What RONL Business API does and why
  • User Guides — The werkomgeving's four boards and the public knowledge base
  • Developer Docs — Local setup, backend, frontend, deployment
  • References — API endpoints, environment variables, JWT claims, standards
