The Linked Data Explorer integrates with the Digitaal Stelsel Omgevingswet (DSO) — the national catalogue and registry stack underpinning the Dutch Environment and Planning Act. This integration lets process designers link BPMN subprocesses directly to their authoritative DSO activiteit, browse the Stelselcatalogus and werkzaamheden registry from inside LDE, verify references against live DSO data, and — as of v1.9.3–v1.9.5 — extract an activity's toepasbare regels into deploy-ready LDE assets (DMN, form scaffold) or hand them off to the CPSV Editor for publishing.

A toggle in Settings selects between the pre-production and production DSO environments independently of the LDE environment.

Prefer the short version?

DSO Viewer APIs — Slide Deck covers the same ground in twelve slides, and is downloadable as a PDF.

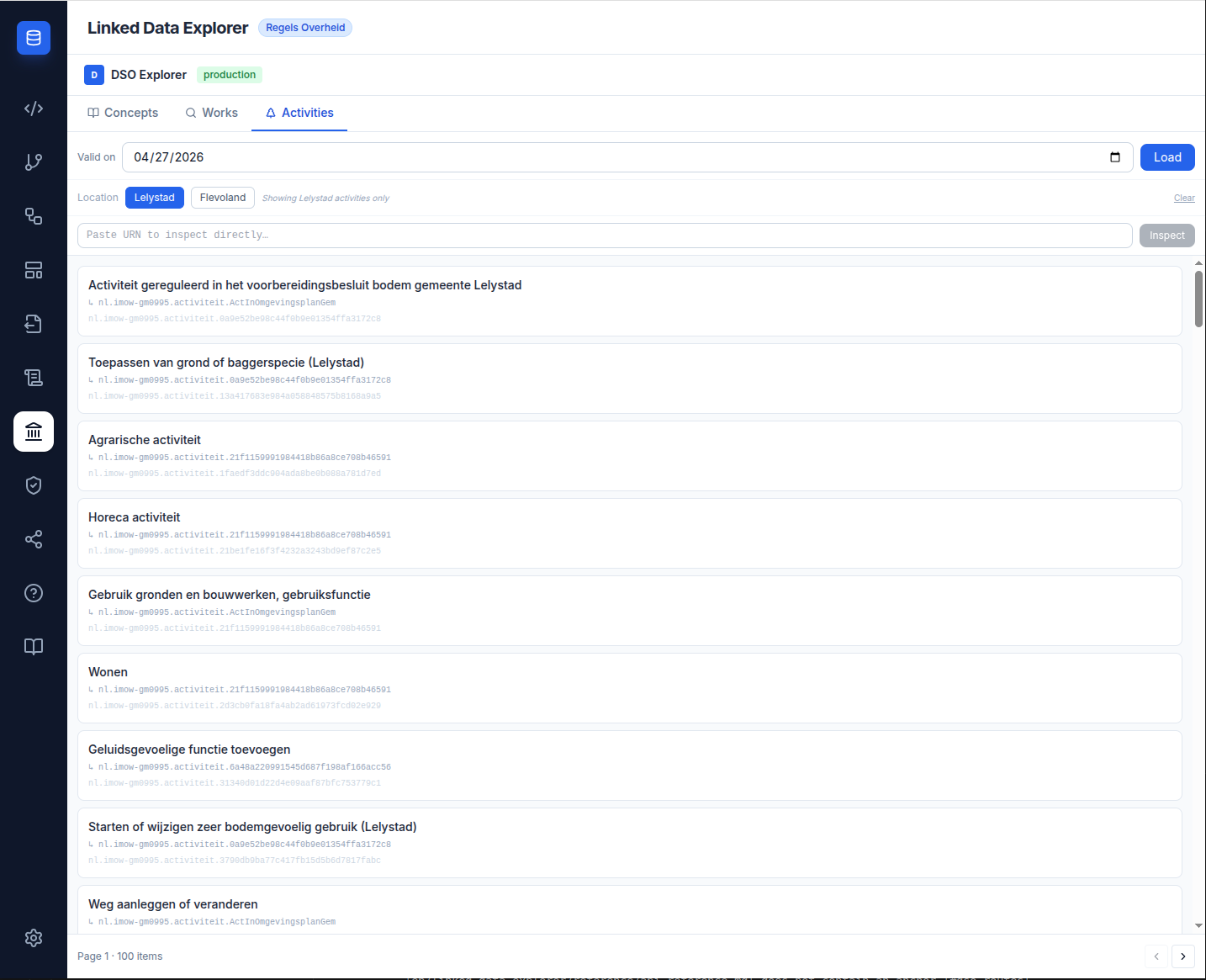

Screenshot: DSO Explorer panel open in LDE with the three tabs visible at the top — Concepts, Works, Activities — the Activities tab active showing a list of activiteiten with omschrijving, validity dates, and rule-types-present badges, plus a date input and authority preset dropdown above the list

DSO Explorer with the Activities tab active and the Lelystad authority preset selected

The five DSO APIs behind the viewer

The frontend never calls DSO directly. Every request goes through the LDE backend, which mounts its DSO proxy at /v1/dso and attaches the x-api-key credential server-side. That keeps the DSO key out of the browser and lets a single X-Dso-Env header switch the whole viewer between the pre-production and production stelsel.

DsoExplorer.tsx  →  dsoService.ts  →  LDE /v1/dso/*  →  dso.service.ts  →  DSO API
   (component)      (frontend client)     (proxy route)      (backend service)

Five separate upstream APIs back the viewer:

# API Path What it backs in LDE
1 Stelselcatalogus catalogus/api/opvragen/v3 Concepts tab — concept and term lookup
2 RTR Gegevens toepasbare-regels/api/rtrgegevens/v2 Activities tab, activity detail, child-activity lookups, BPMN URN verification
3 Zoekinterface toepasbare-regels/api/zoekinterface/v2 Works tab — werkzaamheden search and autocomplete
4 Opvragen Werkzaamheden toepasbare-regels/api/opvragenwerkzaamheden/v1 Works tab — versioned werkzaamheid detail
5 Toepasbare Regels Uitvoeren Gegevens toepasbare-regels/api/toepasbareregelsuitvoerengegevens/v1 Applicable Rules panel — rule metadata and STTR download

Pre-production base URLs are service.pre.omgevingswet.overheid.nl/publiek/<path>; production is the same path on service.omgevingswet.overheid.nl. Each base URL is overridable per environment (DSO_CATALOGUE_BASE_URL, DSO_RTR_BASE_URL, DSO_ZOEKINTERFACE_BASE_URL, DSO_OPVRAGEN_WERKZAAMHEDEN_BASE_URL, DSO_UITVOEREN_GEGEVENS_BASE_URL, each with a _PROD counterpart), and the two environments carry their own keys (DSO_API_KEY / DSO_API_KEY_PROD).

Common to every call: Accept: application/hal+json (STTR downloads ask for application/xml, autocomplete for application/json), a DSO_TIMEOUT of 15 000 ms enforced with an AbortController, and HAL payloads returned verbatim inside LDE's { success, data } envelope — the frontend unwraps _embedded.* and _links.next itself. Any non-2xx from DSO surfaces as a 502 from LDE carrying the upstream body, except an upstream 404, which is passed through as a 404.

The per-endpoint parameters and the complete LDE-endpoint-to-DSO-call map live in the API Reference — DSO Integration.

DSO environment toggle

The DSO environment is set in Settings → DSO environment and persisted to localStorage. It is independent of the LDE environment toggle — pre-production LDE can talk to production DSO and vice versa, which matters because some authority data is only available in one environment.

LDE setting API target
Pre-production service.pre.omgevingswet.overheid.nl
Production service.omgevingswet.overheid.nl

A coloured badge in the DSO Explorer header reflects the active environment — amber for pre-production, green for production.

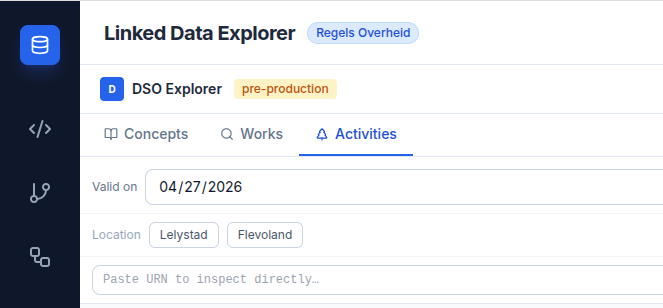

Screenshot: DSO Explorer header showing the environment badge — amber pill with text Pre-production next to the panel title, plus the cog icon that opens the Settings panel

DSO environment badge in the panel header

Concepts tab

Full-text search over the Stelselcatalogus, paged 20 at a time. Returns concepts with their URI, label, definition, and source. Useful for discovering the canonical conceptual reference behind a citizen-facing term.

The backend also accepts a validity date (geldigOp, YYYY-MM-DD) on this search, but the Concepts tab has no field for it — historical concept lookups are out of reach from the UI.

Works tab — werkzaamheden

Search the Zoekinterface for werkzaamheden (the citizen-facing tasks that anchor a permit application — "boom kappen", "Bed & Breakfast starten"). Autocomplete fires after two characters with 300ms debounce.

Each result shows:

  • The human-readable omschrijving (e.g. "Bed & Breakfast starten")
  • The full functioneleStructuurRef URI — the pivot to STTR files used by the Phase 4 extraction (see Applicable rules → LDE assets)
  • The short werkzaamheid URN

Selecting a result opens a detail panel with the current version's metadata, validity period, and full version history (each version showing start/end dates and a "current" badge).

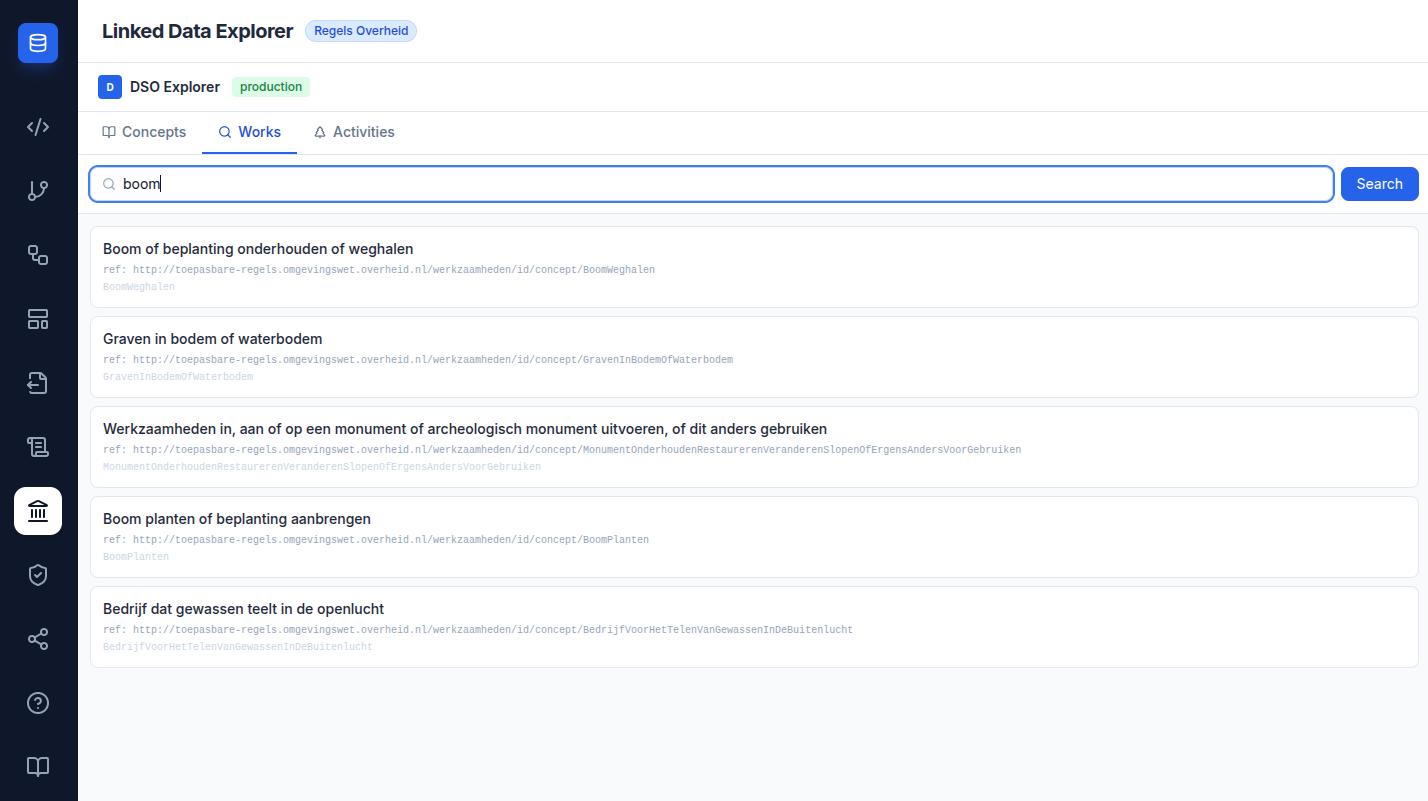

Screenshot: Works tab in the DSO Explorer with a search for boom in the search box, showing autocomplete suggestions in a dropdown, and below that a results list with multiple werkzaamheden cards — each showing the omschrijving, the ref URI line, and a short URN at the bottom

Werkzaamheden search with autocomplete suggestions

Default sort order is meestGekozen — the most-used Omgevingsloket werkzaamheden appear first.

The tab straddles two APIs. Search and autocomplete hit the Zoekinterface (POST /werkzaamheden/_zoek, POST /werkzaamheden/_suggereer), but the detail panel that opens on a result comes from Opvragen Werkzaamheden (GET /werkzaamheden/{urn}) — that is the call that returns the full _embedded.werkzaamheidversies list with trefwoorden and logischeRelaties. Autocomplete failures degrade silently to an empty suggestion list rather than surfacing an error.

Activities tab — activiteiten

Browse the RTR (Registratie Toepasbare Regels) for activiteiten. The tab has two load modes:

Mode Call Paging
By date (default) GET /activiteiten?datum — every activity valid on that date 20 per page
By authority (location preset) POST /activiteiten/_zoek with bestuursorgaan.oin — that authority's complete set in one call pageSize=200, so the name filter runs client-side

The authority presets — Lelystad, Flevoland, and, since v2026.08.0, Ede and Gelderland — filter by authority OIN (Organisatie-identificatienummer). The preset list carries the OIN-to-name mapping too, because the RTR only ever returns the authority code (GM0995), never a readable name.

The date input above the list defaults to today; changing the date and clicking Load re-fetches the authority list valid on that date. Dates are entered as ISO (YYYY-MM-DD) and converted to the DSO's dd-MM-yyyy before being sent.

A third mode exists in the backend but has no UI: POST /v1/dso/activiteiten/zoek also accepts a WGS84 point (geometrie + crs=epsg:4326) and is implemented and tested end to end. It is waiting on a map or point-selection feature — see API Reference.

Name search (v1.9.4). Fixing a location loads that authority's full activity set in one call and reveals a search box that live-filters by name — so activities such as "Boom kappen of houtopstand vellen" are findable without walking the hierarchy.

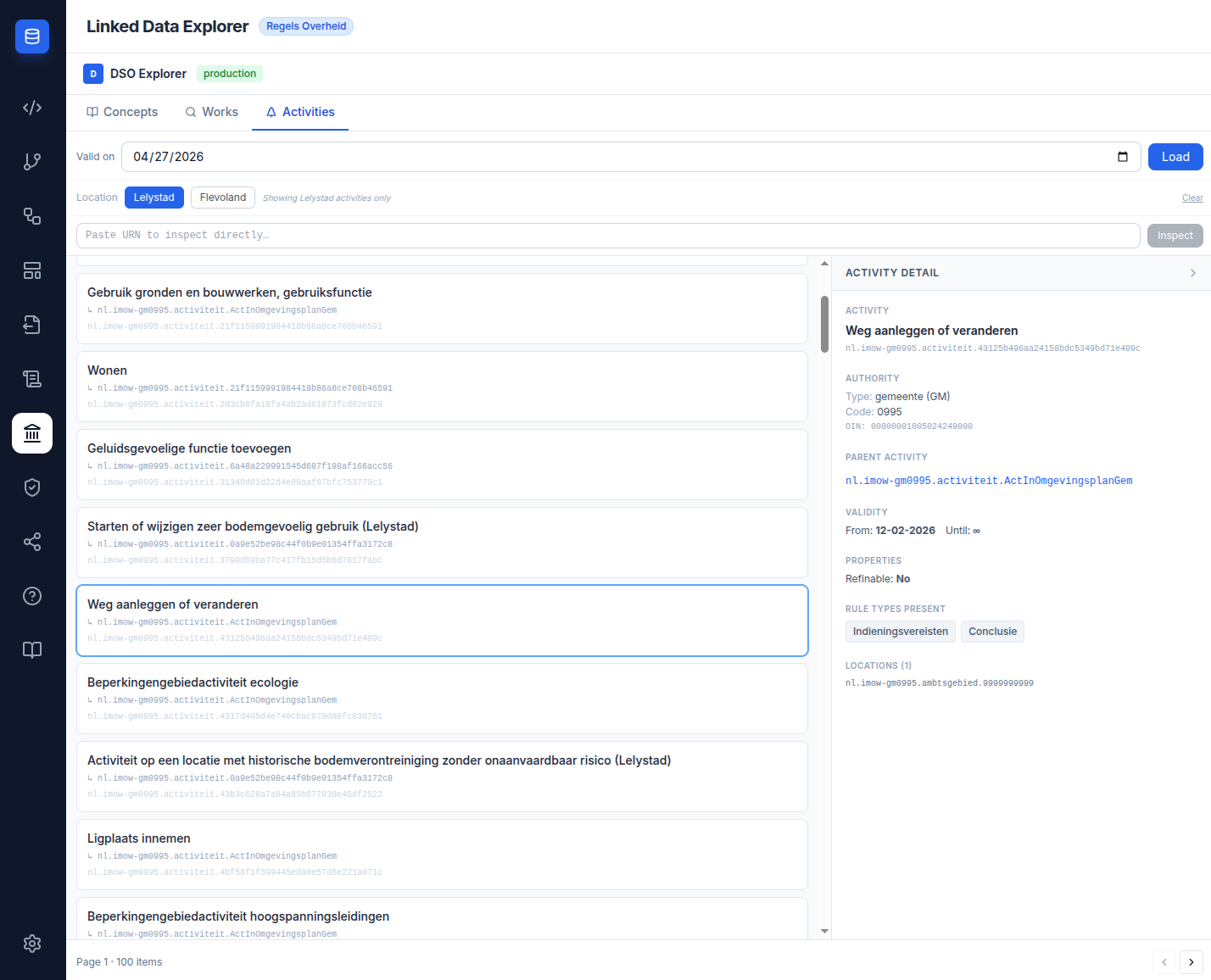

Screenshot: Activities tab showing the date input at the top with todays date, the authority preset dropdown showing Lelystad selected, a Load button next to it, and below a list of activiteiten cards each with omschrijving, validity period, and small badges indicating which rule types are present — Conclusie, Indieningsvereisten, Maatregelen

Activities list filtered by Lelystad authority OIN

Each activity card shows badges for the rule types declared on the activity:

  • Conclusie — full DMN decision content available
  • Indieningsvereisten — application requirements (questionnaire-style DMN)
  • Maatregelen — measures (textual content, structured per maatregel)

These badges flag which downstream LDE assets can eventually be derived from the activity in Phase 4 (DMN, form, document template).

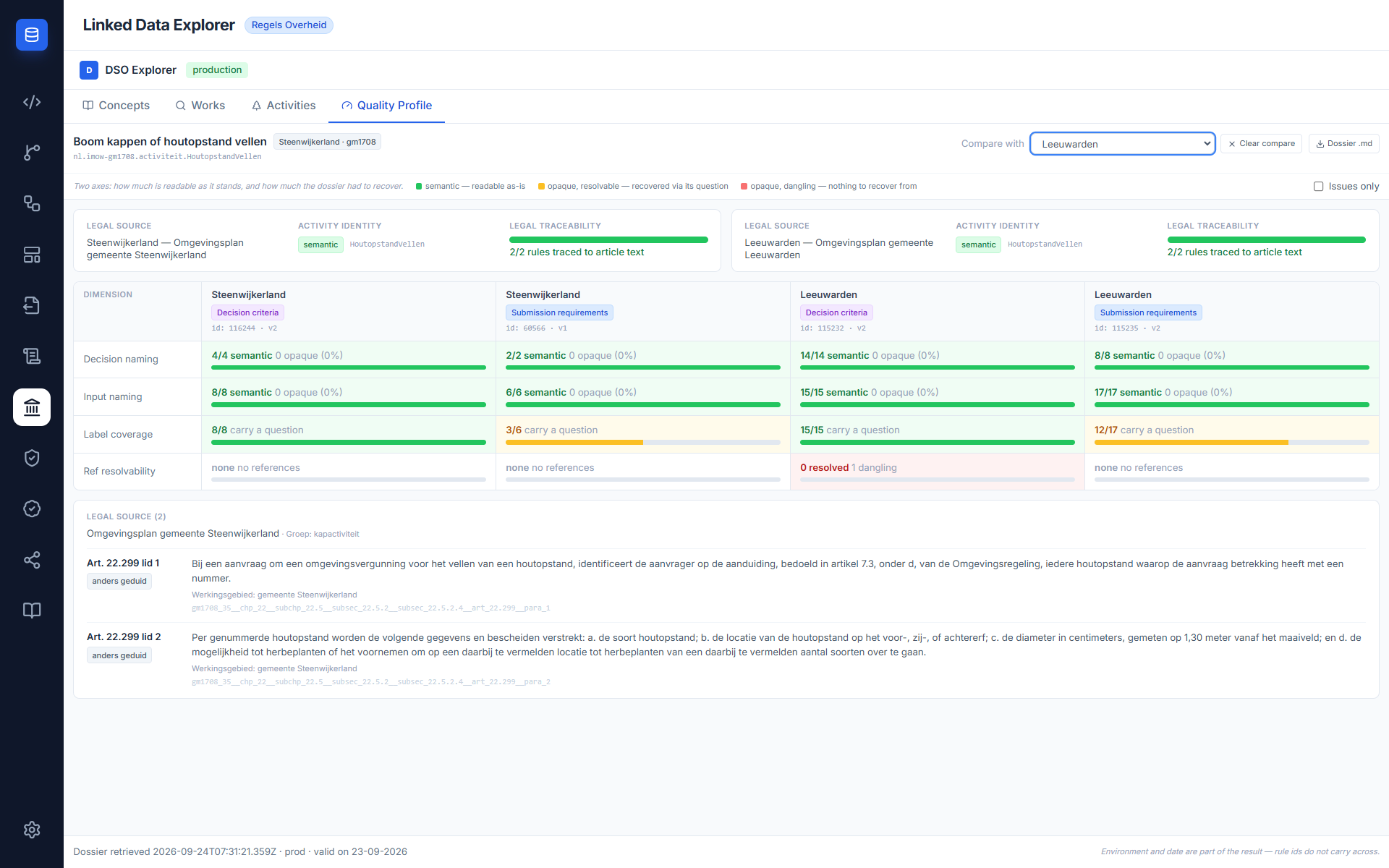

Activity Detail panel

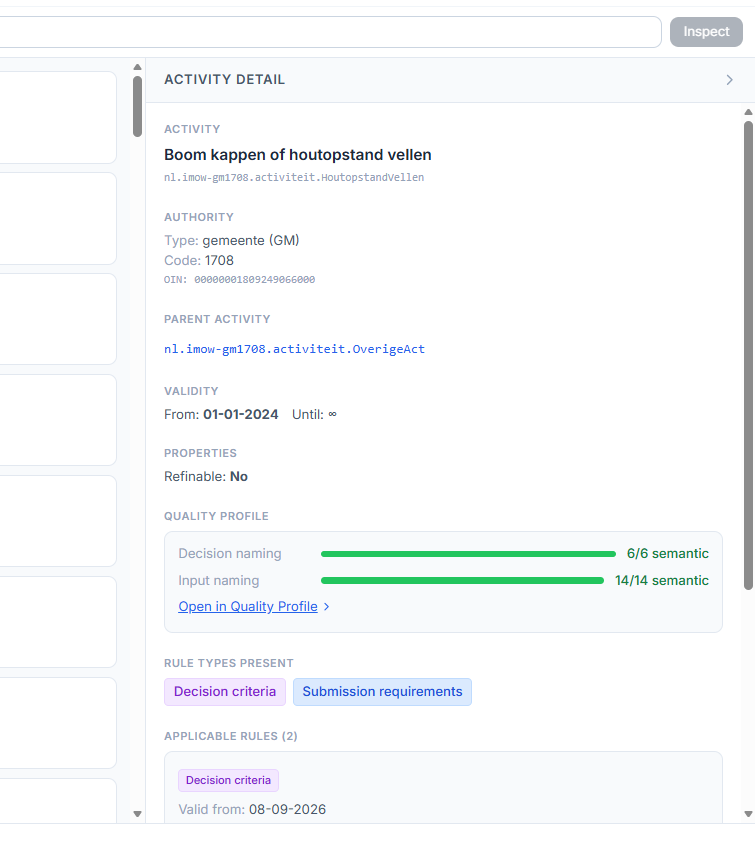

Clicking an activity row opens the detail panel. It shows:

  • omschrijving and full URN
  • bestuursorgaan (authority) — bestuurslaag, organisatieType, code, OIN
  • validity (begindatum / einddatum)
  • parent activity link (if any)
  • child activities — see the fan-out below
  • rule types present, with download links

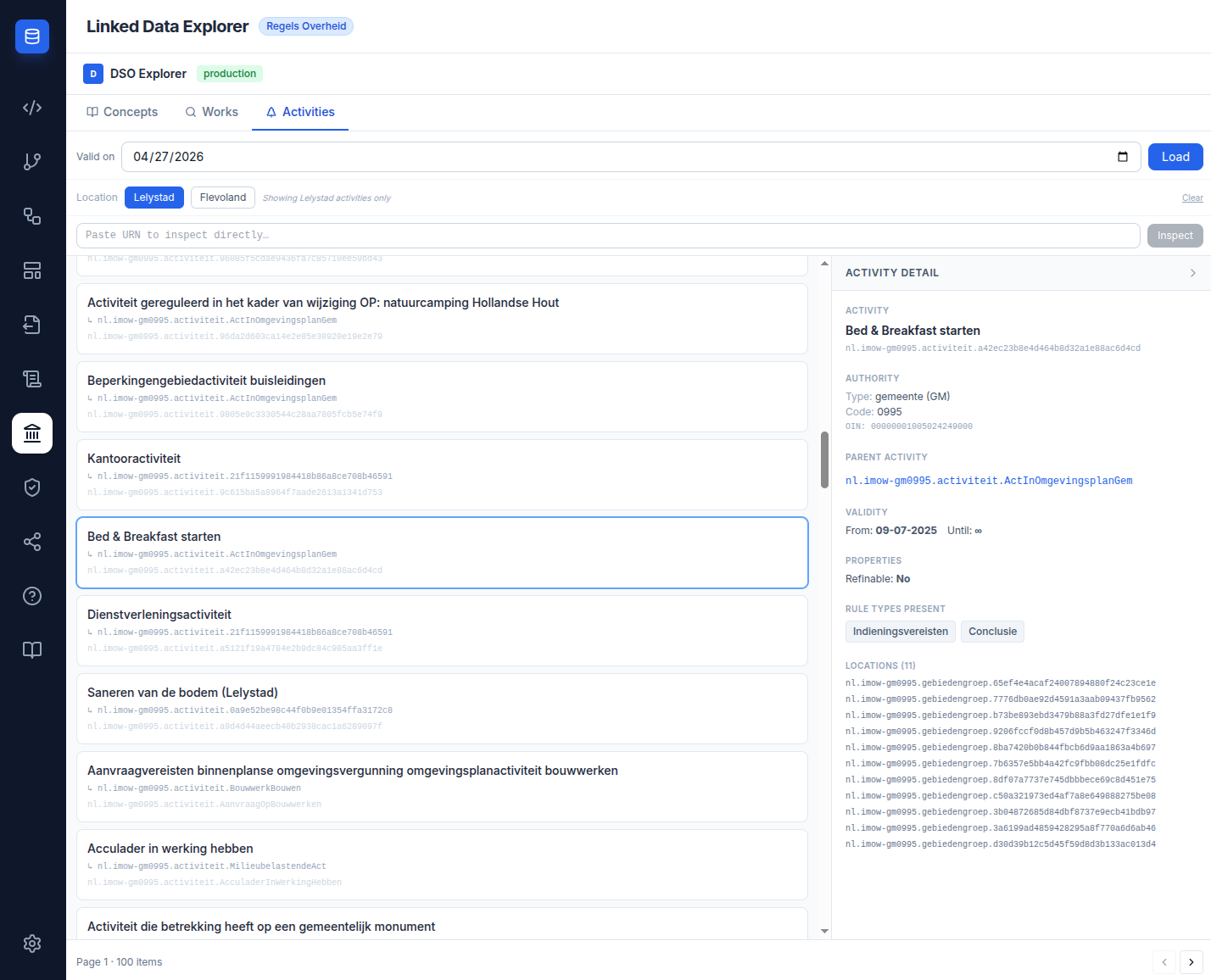

Screenshot: Activity Detail panel for Bed & Breakfast starten showing the omschrijving as the heading, authority block with gemeente Lelystad GM 0995 OIN, validity from 09-07-2025, two rule-type rows for Conclusie and Indieningsvereisten each with their functioneleStructuurRef and a Download STTR button, and a child activities list at the bottom

Activity Detail panel for "Bed & Breakfast starten"

If an activity is queried from the wrong DSO environment (e.g. trying to view a production-only URN while the toggle is on pre-production), the detail panel shows a clear "not available in this environment" message rather than a raw 404.

Child-activity fan-out — one click, 1 + N requests

The RTR returns child activities as bare HAL hrefs under _links.onderliggendeActiviteiten, with no omschrijving attached. The panel therefore cannot label them without asking the API about each child individually. As soon as the parent resolves, it fires one additional activity-detail request per child, all in parallel, purely to read each child's name:

GET /v1/dso/activiteiten/{parent-urn}       ->  1 request
  |- GET /v1/dso/activiteiten/{child-1}     -+
  |- GET /v1/dso/activiteiten/{child-2}      |-  N requests, fired together
  |- ...                                    -+

Every one of those is the same endpoint chain as the parent, so a single click costs 1 + N upstream RTR calls. N is whatever the parent declares — an activity such as Bedrijfsactiviteiten, with 23 children, means 24 requests to render one detail panel.

What that means in practice:

  • The fan-out uses Promise.allSettled, so one failing child never breaks the panel or the other lookups.
  • Children that resolve render as a named link; children that fail, or that come back without an omschrijving, fall back to the raw URN — still clickable, just unlabelled. This is why a panel can show a mix of names and URNs.
  • The Child activities (N) heading counts the href list, not the resolved names, so the count stays correct even when some lookups fail.
  • Each child request inherits the parent's datum and env.
  • Names live in local component state, cleared and re-fetched on every urn / datum / env change. There is no cache and no concurrency cap: navigating into a child issues its own fan-out, and re-opening an activity you already visited fetches everything again.

This is the viewer's heaviest interaction and exists only to turn hrefs into readable names. If child counts grow or DSO rate limiting appears, it is the first thing to memoise.

Applicable rules → LDE assets (Phase 4)

As of v1.9.3 the Activity Detail panel includes an Applicable Rules section listing the toepasbare regels fetched live from the DSO Uitvoeren Gegevens API, grouped by rule type (Conclusie / Indieningsvereisten) with the validity date and STTR version. Each rule type exposes a set of one-click actions, backed by the GET /v1/dso/toepasbare-regels/* backend routes:

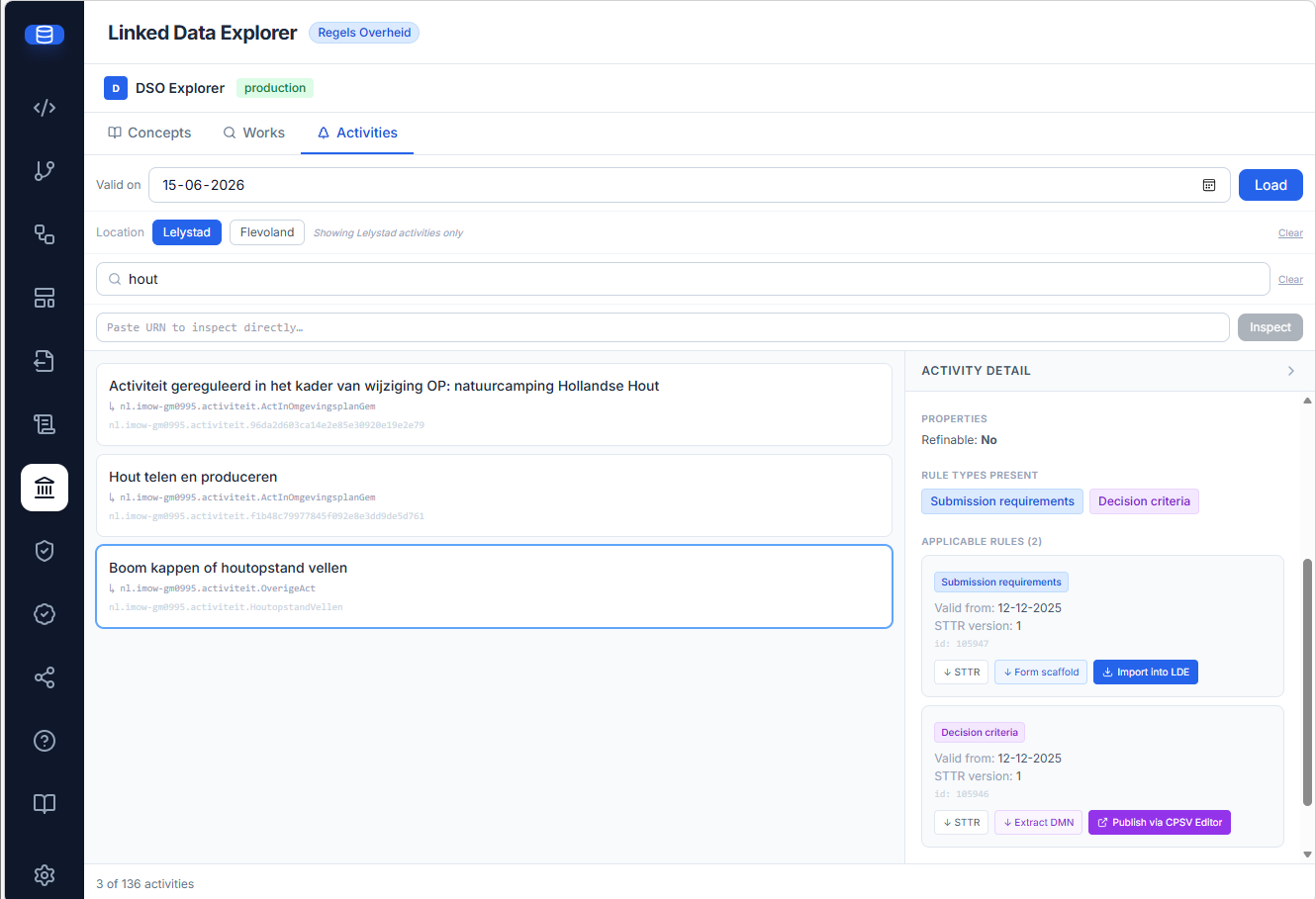

Screenshot: Activity Detail panel "Applicable Rules" section for the HoutopstandVellen activity, showing a Conclusie row and an Indieningsvereisten row each with validity date and STTR version, and the action buttons — Download STTR, Extract DMN, Publish via CPSV Editor on the Conclusie row; Form scaffold and Import into LDE on the Indieningsvereisten row

Applicable Rules section with the Phase 4 extract/import/publish actions
Action Rule type What it does Backend route
↓ STTR any Downloads the raw STTR XML /toepasbare-regels/:id/sttr
↓ Extract DMN Conclusie Extracts the embedded DMN decision table as a standalone, deploy-ready .dmn file /toepasbare-regels/:id/dmn
↓ Form scaffold Indieningsvereisten Generates a form-js JSON scaffold from the STTR questionnaire /toepasbare-regels/:id/form-scaffold
↓ Import into LDE (v1.9.4) Indieningsvereisten Saves the generated form-js scaffold straight into the Form Editor as a draft — no manual download/import /toepasbare-regels/:id/form-scaffold
Publish via CPSV Editor (v1.9.4) Conclusie Opens the CPSV Editor with a deep-link to publish the extracted DMN to TriplyDB, where the LDE DMN picker can consume it (deep-link)

Form scaffold mapping. The STTR questionnaire is mapped to form-js controls:

STTR question form-js field
boolean checkbox
list select, options from uitv:optie
number number
inter:inputType=textarea textarea
anything else textfield
uitv:bijlage (attachment) labelled placeholder textfield
uitv:geoVerwijzing skipped — not representable in form-js

A questionnaire containing a geo reference therefore produces a scaffold with that question missing; check the source STTR if a generated form looks short.

Scaffolds are stamped executionPlatform: Camunda Platform 7.21.0 and status: 'dso', and can be downloaded as JSON or imported straight into the Form Editor. Imported forms are tagged with the readable authority name (e.g. "Lelystad", v1.9.4), falling back to the RTR code (GM0995) for authorities outside the known presets, and show a green DSO badge in the Form Editor list (v1.9.5).

Deploy-ready DMN. normalizeDmnForOperaton applies five fixes that make Sogelink STTR Builder output both deployable and evaluatable (v1.9.4–v1.9.5): DMN 1.2 namespaces are upgraded to 1.3; missing ids are injected on <input> and <inputExpression>; <variable> names are made FEEL-safe with the <inputExpression> references rewritten to match (hyphens and spaces previously broke evaluation); untyped outputs get an explicit typeRef (BIZ-004); and camunda:historyTimeToLive="180" is set per decision so the model deploys exactly as handed off. Verified end-to-end against Operaton (the normalized HoutopstandVellen decision deploys with all 7 decisions and its root decision evaluates without the previous FEEL error).

The DMN publish handoff is the LDE side of the same deep-link contract the CPSV Editor consumes via its DSO → DMN import. LDE has no local DMN store, so the link — <VITE_CPSV_EDITOR_URL>/?dsoImport=dmn&dmnId=<id>&env=<pre|prod> plus activity metadata — carries identifiers only; the CPSV Editor then fetches the XML from GET /v1/dso/toepasbare-regels/{dmnId}/dmn on this same backend. That endpoint is therefore a cross-application contract, not an internal route.

Linking a BPMN subprocess to a DSO activiteit

The BPMN Modeler footer panel has a DSO Activity selector. Pasting a URN and clicking Verify queries the live DSO RTR — on success, the panel shows the omschrijving, authority, and a direct link to the public RTR viewer. The URN is then persisted on the BPMN process element as ronl:dsoActiviteitUrn.

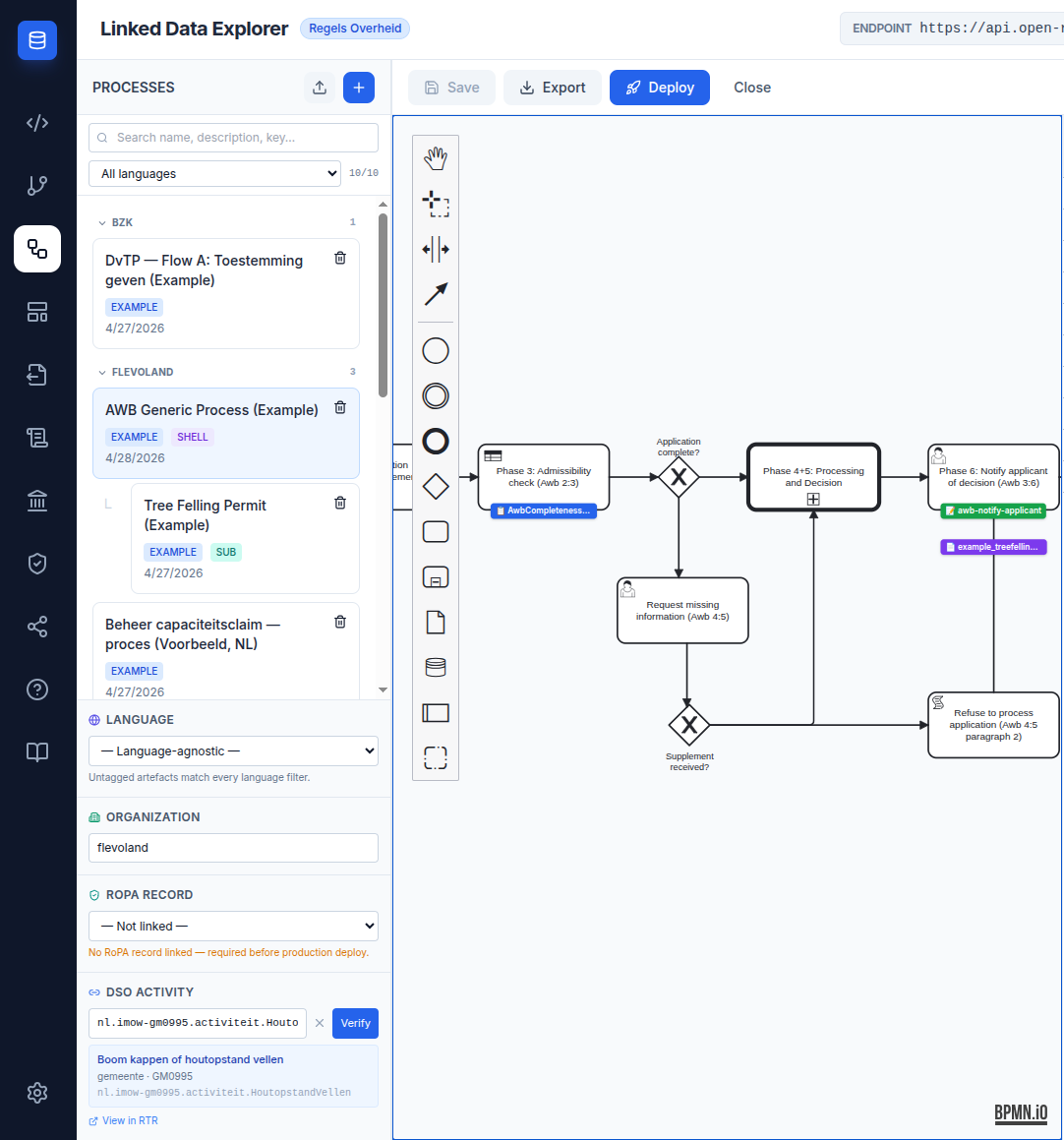

Screenshot: BPMN Modeler footer panel with the DSO Activity section open showing a URN paste field with a Lelystad B&B URN entered, the Verify button, and below it a teal info card showing the omschrijving Bed & Breakfast starten, the authority gemeente Lelystad, and an external link icon labelled View in DSO RTR viewer

DSO Activity selector pinned to the BPMN Modeler footer

The verified URN survives saveXML round-trips and follows the same pattern as other ronl: extensions (RoPA, language, organization).

Verification always queries pre-production

The selector calls getActiviteitDetail(urn) without an env argument, so it falls back to the pre default and ignores the DSO environment toggle in Settings. A URN that exists only in production will report "URN not found in DSO" here no matter which environment is selected — verify it in the DSO Explorer's Activities tab instead.
