Regelcatalogus

From v2.5.0, the RONL Business API caseworker dashboard includes a Regelcatalogus — a public-facing section that exposes the RONL knowledge graph directly inside MijnOmgeving, without requiring a caseworker login. It draws on five parallel SPARQL queries against the RONL TriplyDB endpoint and presents services, organisations, concepts, and implementation rules in a tabbed interface.

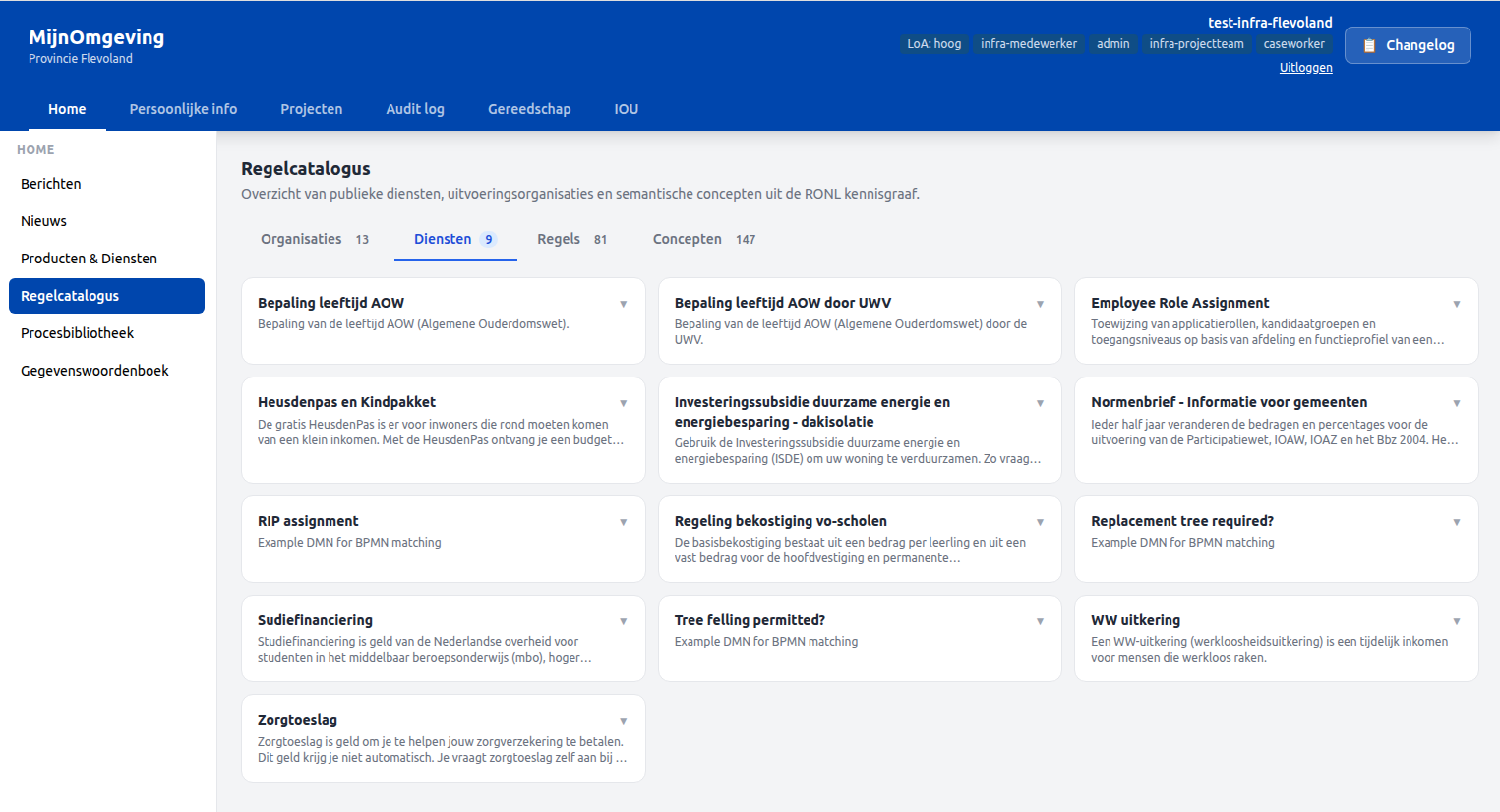

Screenshot: Regelcatalogus — Diensten tab

Regelcatalogus — Diensten tab showing public service cards

Placement and access

The Regelcatalogus appears as a third item under the Home tab in the caseworker dashboard left panel. It is declared with "isPublic": true in tenants.json, so it is visible to unauthenticated visitors alongside Nieuws and Berichten.

The section is rendered by the RegelCatalogus React component (src/components/CaseWorkerDashboard/RegelCatalogus.tsx), which calls GET /v1/public/regelcatalogus on mount and distributes the response across four internal tabs.

The four tabs

From v2.9.2 the tabs render in this order: Organisaties, Diensten, Regels, Concepten.

Organisaties

Implementing organisations are listed with their logo (resolved via the TriplyDB assets API to a versioned CDN URL), homepage link, and the services they implement. The same logo resolution mechanism is used in the Linked Data Explorer.

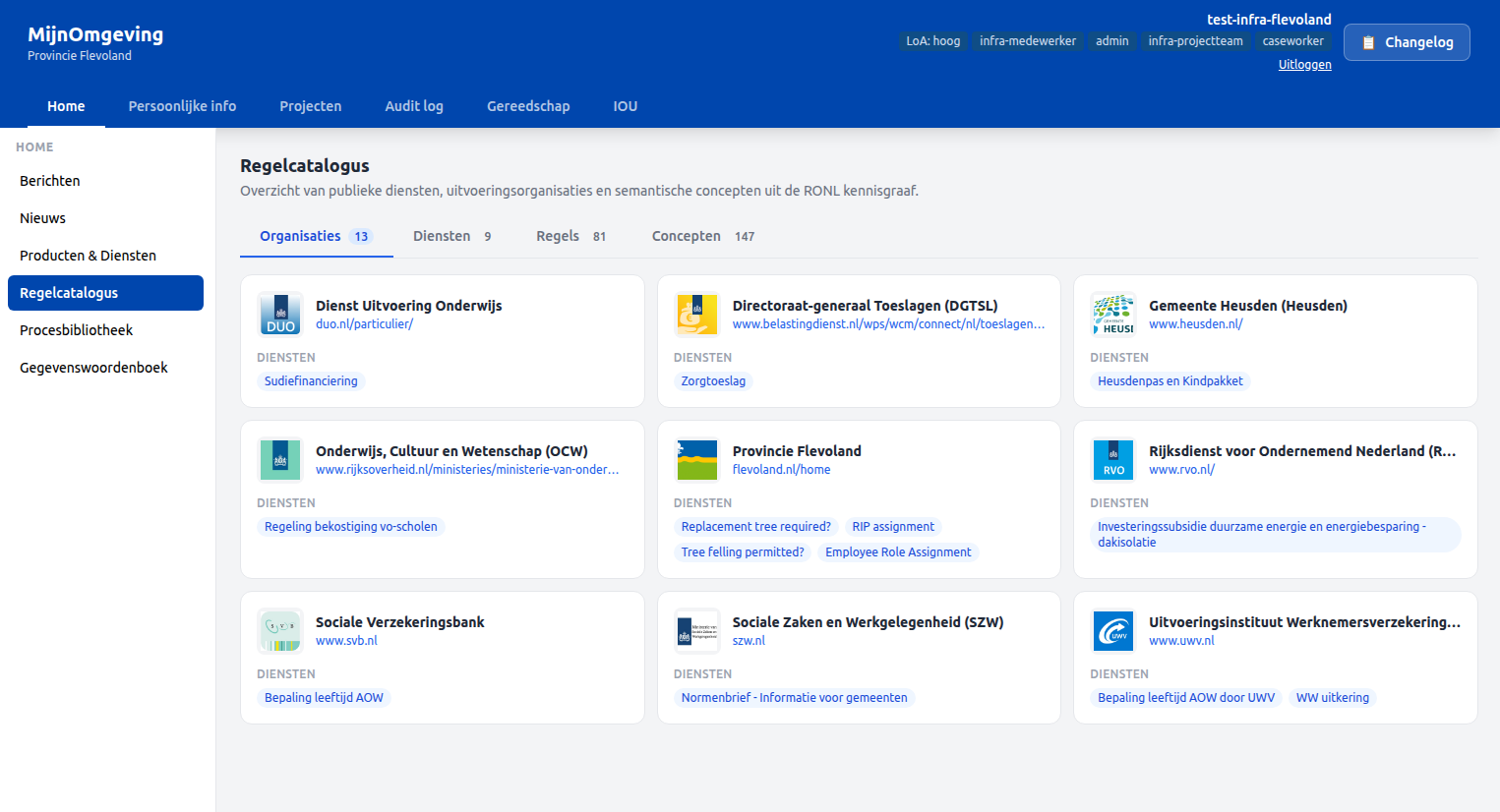

Screenshot: Regelcatalogus — Organisaties tab

Regelcatalogus — Organisaties tab with implementing organisations

Diensten

Public services from the RONL knowledge graph are shown as expandable cards. Each card displays the service title, a full description, and a link to the service URI in TriplyDB. Clicking Toon concepten navigates directly to the Concepten tab with that service pre-selected as a filter.

Regels

Implementation rules are grouped by service. Each group is collapsible. A search input filters across all groups simultaneously; matching groups expand automatically. Each rule entry shows the rule title, optional validity date, and an expandable description.

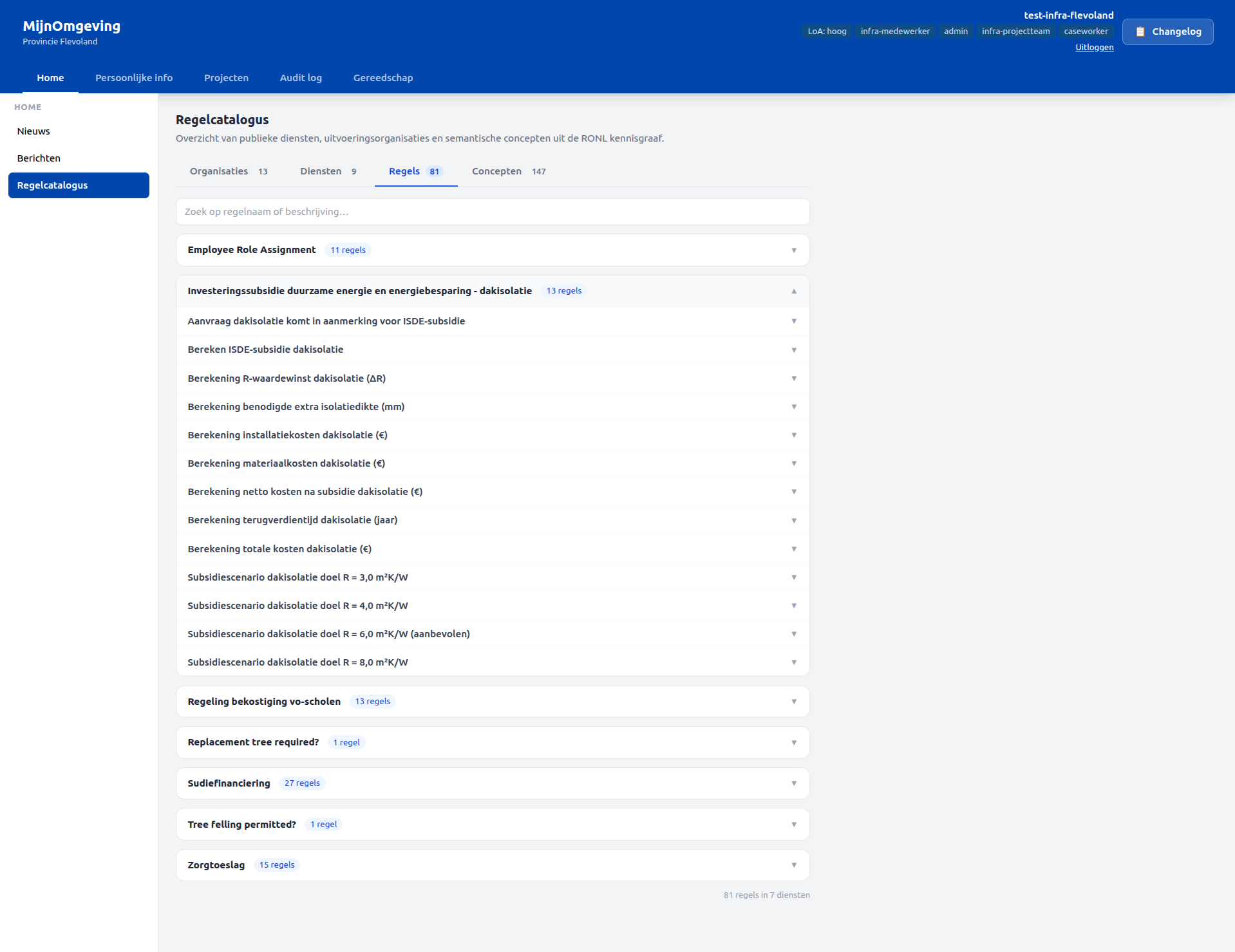

Screenshot: Regelcatalogus — Regels tab

Regelcatalogus — Regels tab with grouped implementation rules

Concepten

NL-SBB concepts are searchable by label and filterable by service. Each row has an external link icon that opens the skos:exactMatch URI in a new tab.

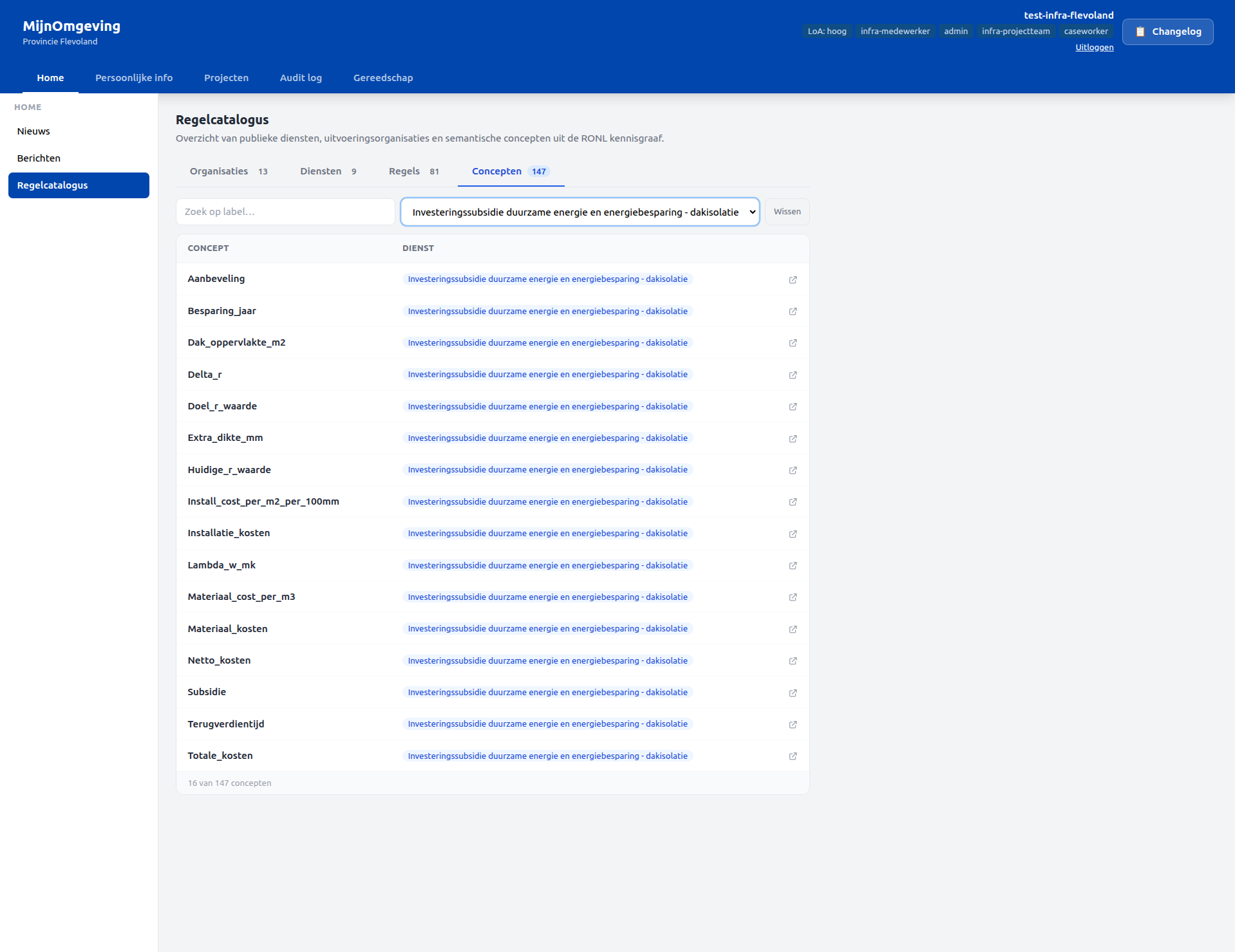

Screenshot: Regelcatalogus — Concepten tab

Regelcatalogus — Concepten tab with search and service filter

Backend endpoint

GET /v1/public/regelcatalogus — no authentication required.

The endpoint fires five parallel SPARQL queries against the RONL TriplyDB endpoint:

Query Data returned
PublicService Service titles, descriptions, URIs
PublicOrganisation Organisation names, homepages, logo assets
Competent authority links Maps organisations to services
NL-SBB concept traversal Concept labels, service links, skos:exactMatch URIs
cpsv:Rule implementations Rule titles, descriptions, service grouping, validity dates

Results are cached in-memory per data slice for 5 minutes. On TriplyDB failure the stale cache is returned so the UI never renders blank.

The SPARQL endpoint can be overridden per deployment using the RONL_SPARQL_ENDPOINT environment variable (see Environment Variables).

Response shape:

{
  "success": true,
  "data": {
    "services": [
      {
        "uri": "https://example.org/service/zorgtoeslag",
        "title": "Zorgtoeslag",
        "description": "...",
        "organisationUri": "https://example.org/org/belastingdienst"
      }
    ],
    "organisations": [
      {
        "uri": "https://example.org/org/belastingdienst",
        "name": "Belastingdienst",
        "homepage": "https://belastingdienst.nl",
        "logo": "https://api.triplydb.com/assets/..."
      }
    ],
    "concepts": [
      {
        "uri": "https://example.org/concept/toetsingsinkomen",
        "prefLabel": "Toetsingsinkomen",
        "serviceTitle": "Zorgtoeslag",
        "exactMatch": "https://wetten.overheid.nl/..."
      }
    ],
    "rules": [
      {
        "uri": "https://example.org/rule/zorgtoeslag-artikel-1",
        "ruleTitle": "Zorgtoeslag artikel 1",
        "description": "...",
        "serviceTitle": "Zorgtoeslag",
        "validFrom": "2026-01-01",
        "confidence": "high"
      }
    ]
  },
  "meta": { "generatedAt": "2026-03-12T12:00:00.000Z" }
}

tenants.json configuration

All current tenants include "regelcatalogus" in their home left panel sections:

{
  "id": "regelcatalogus",
  "label": "Regelcatalogus",
  "isPublic": true
}
