Logging In — Citizen & Caseworker

This guide explains what happens when a citizen (burger) or caseworker (medewerker) logs into a municipality portal powered by RONL Business API. The two roles use different authentication paths, which are reflected in both the landing page and the Keycloak login experience.

Environments:

URL
Acceptance https://acc.mijn.open-regels.nl
Production https://mijn.open-regels.nl

In the test environment, use the Keycloak test accounts listed in Local Development Setup instead of real DigiD or employee credentials.

Citizen login

Citizens are Dutch residents, EU residents, or businesses accessing government services. They authenticate through a government-issued identity provider.

What you need

  • A DigiD account (Dutch residents), or
  • An eHerkenning account (businesses / organisations), or
  • An eIDAS credential (EU residents without DigiD)

Step 1 — Visit the portal

Open the municipality portal in your browser. You will see the MijnOmgeving landing page with four login options — three for citizens and one for caseworkers.

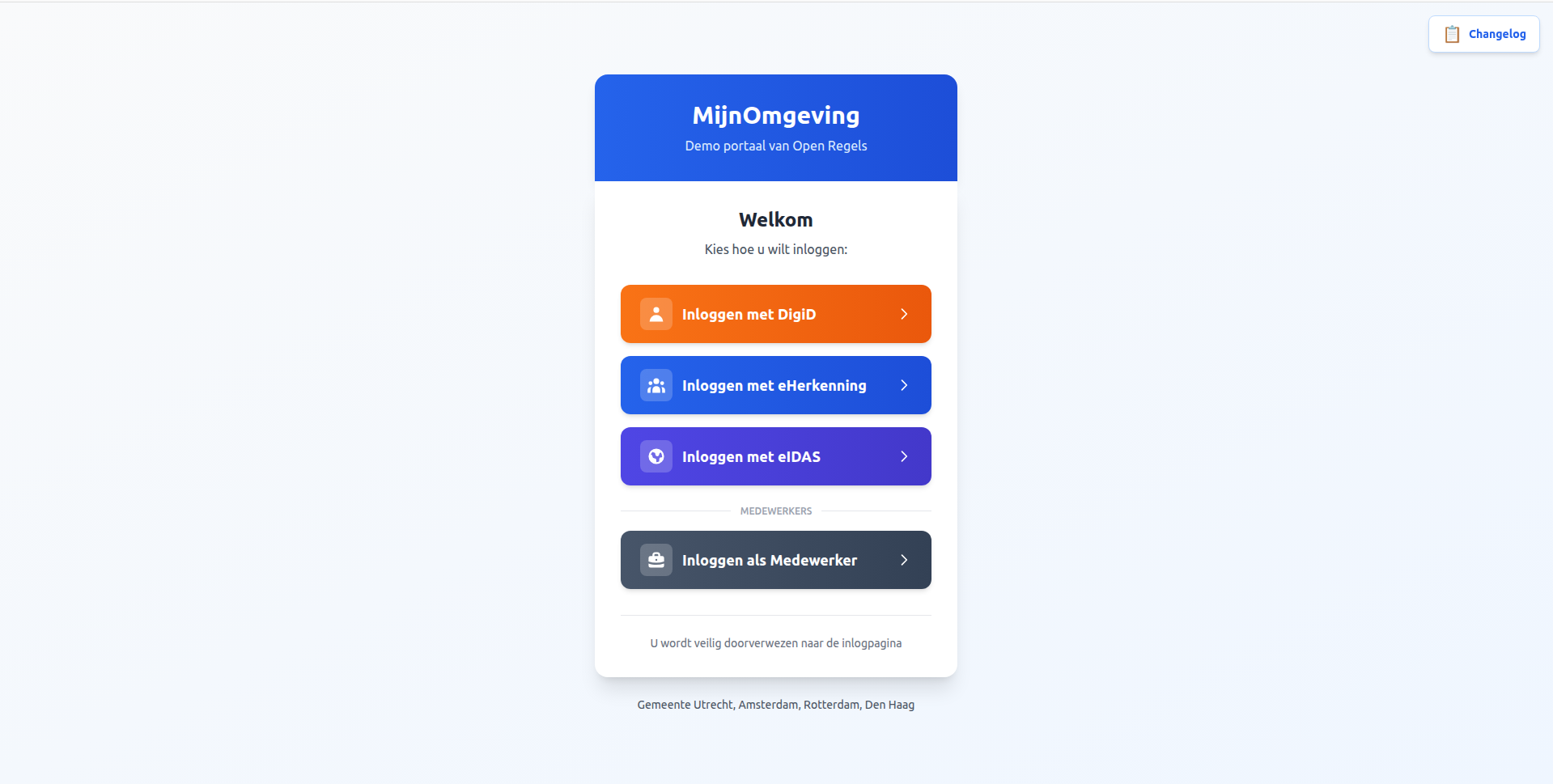

Screenshot: MijnOmgeving Landing Page

MijnOmgeving landing page showing all four login options

Step 2 — Choose your identity provider

Select the option that matches your credential:

🟠 DigiD (Digitale Identiteit) For Dutch residents. Requires a valid DigiD account. Supports assurance levels basis, midden, and hoog.

🔵 eHerkenning For businesses and organisations. Requires an eHerkenning account. Supports mandates (machtiging) for acting on behalf of an organisation.

🟣 eIDAS For EU residents without DigiD. Cross-border authentication compliant with the eIDAS regulation.

Step 3 — Redirect to identity provider

After clicking a citizen button, AuthCallback.tsx calls:

keycloak.init({
  onLoad: 'login-required',
  checkLoginIframe: false,
  idpHint: 'digid' // or 'eherkenning' / 'eidas'
});

The idpHint tells Keycloak to skip its own login form and redirect immediately to the selected identity provider. In production, this takes you directly to DigiD, eHerkenning, or the eIDAS network. In the test environment (no real IdPs configured), Keycloak falls back to its native username/password form without a context banner.

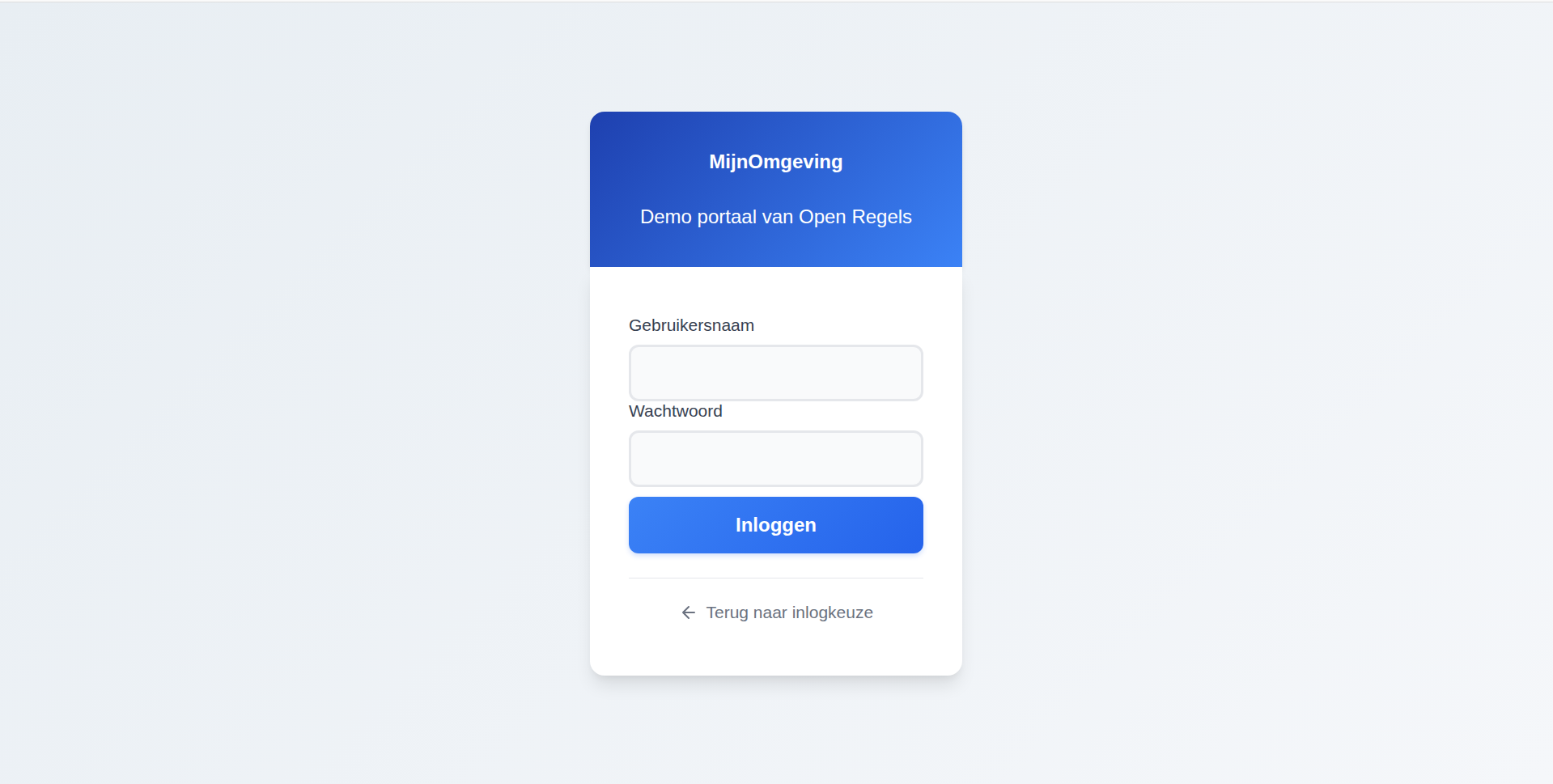

Screenshot: Keycloak Native Login — Citizen (test)

Keycloak native login without caseworker banner

Step 4 — Authenticate

DigiD: Enter your DigiD username and password. Complete two-factor authentication if your assurance level requires it.

eHerkenning: Enter your eHerkenning credentials. Optionally select a mandate if acting on behalf of an organisation.

eIDAS: Authenticate through your EU member state's identity provider.

Step 5 — Token issuance

After successful authentication, Keycloak validates the identity provider response, maps user attributes (BSN for DigiD, KvK number for eHerkenning, eIDAS PersonIdentifier), applies municipality settings, and issues a signed JWT access token.

Example JWT payload (citizen):

{
  "sub": "abc123def456",
  "name": "Jan de Vries",
  "preferred_username": "test-citizen-utrecht",
  "municipality": "utrecht",
  "loa": "hoog",
  "realm_access": {
    "roles": ["citizen"]
  },
  "aud": "ronl-business-api",
  "iss": "https://acc.keycloak.open-regels.nl/realms/ronl",
  "exp": 1708534800,
  "iat": 1708533900
}

Step 6 — Dashboard

The portal receives the JWT and displays the citizen dashboard with municipality-specific theming and the zorgtoeslag calculator. The JWT is valid for 15 minutes and refreshed automatically while the session is active.

Caseworker login

Caseworkers (medewerkers) are municipal employees managed directly in the Keycloak realm. They do not authenticate through DigiD or eHerkenning — they use Keycloak's native username/password form, which is visually distinguished from the citizen login with a dedicated context banner.

What you need

  • A Keycloak account in the ronl realm with the caseworker role assigned
  • The municipality attribute set to your municipality (e.g. utrecht)

Test environment accounts:

Username Municipality Role
test-caseworker-utrecht utrecht caseworker
test-caseworker-amsterdam amsterdam caseworker
test-caseworker-rotterdam rotterdam caseworker
test-caseworker-denhaag denhaag caseworker

Password for all test accounts: test123

Step 1 — Visit the portal and select "Inloggen als Medewerker"

On the MijnOmgeving landing page, scroll past the three citizen options. Below a "MEDEWERKERS" divider you will find the slate-coloured caseworker button.

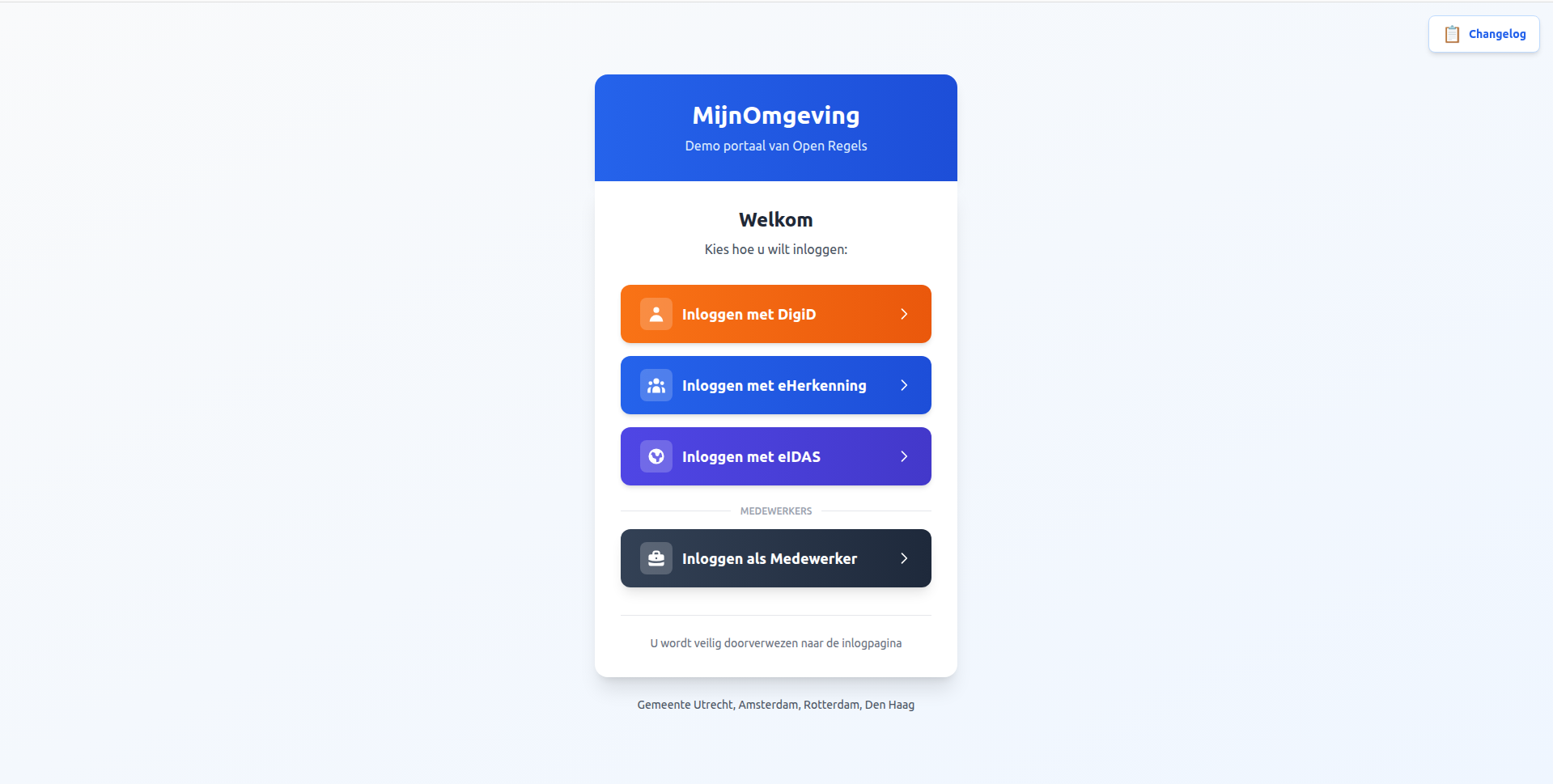

Screenshot: MijnOmgeving Landing Page — Caseworker Button

Caseworker login button, visually separated from citizen IdP options

Step 2 — AuthCallback checks for an existing SSO session

Clicking "Inloggen als Medewerker" stores medewerker in sessionStorage and navigates to /auth. AuthCallback.tsx detects this and calls:

keycloak.init({
  onLoad: 'check-sso',
  checkLoginIframe: false,
});

Unlike the citizen flow (login-required), check-sso does not trigger a redirect. It silently checks whether a Keycloak SSO session already exists in the browser:

  • Session found → navigates directly to /dashboard without any login screen.
  • No session → proceeds to step 3.

Step 3 — Keycloak login with caseworker banner

When no SSO session exists, AuthCallback calls:

keycloak.login({ loginHint: '__medewerker__' });

This redirects to Keycloak and passes __medewerker__ as the login_hint parameter. The login.ftl FreeMarker template reads this value via login.username, detects the sentinel string __medewerker__, and:

  • Sets the page title to "Medewerker portaal" instead of the default "Inloggen"
  • Renders an indigo context banner: "Inloggen als medewerker"
  • Suppresses the sentinel value from the username field (the field renders empty, so the caseworker types their own username)

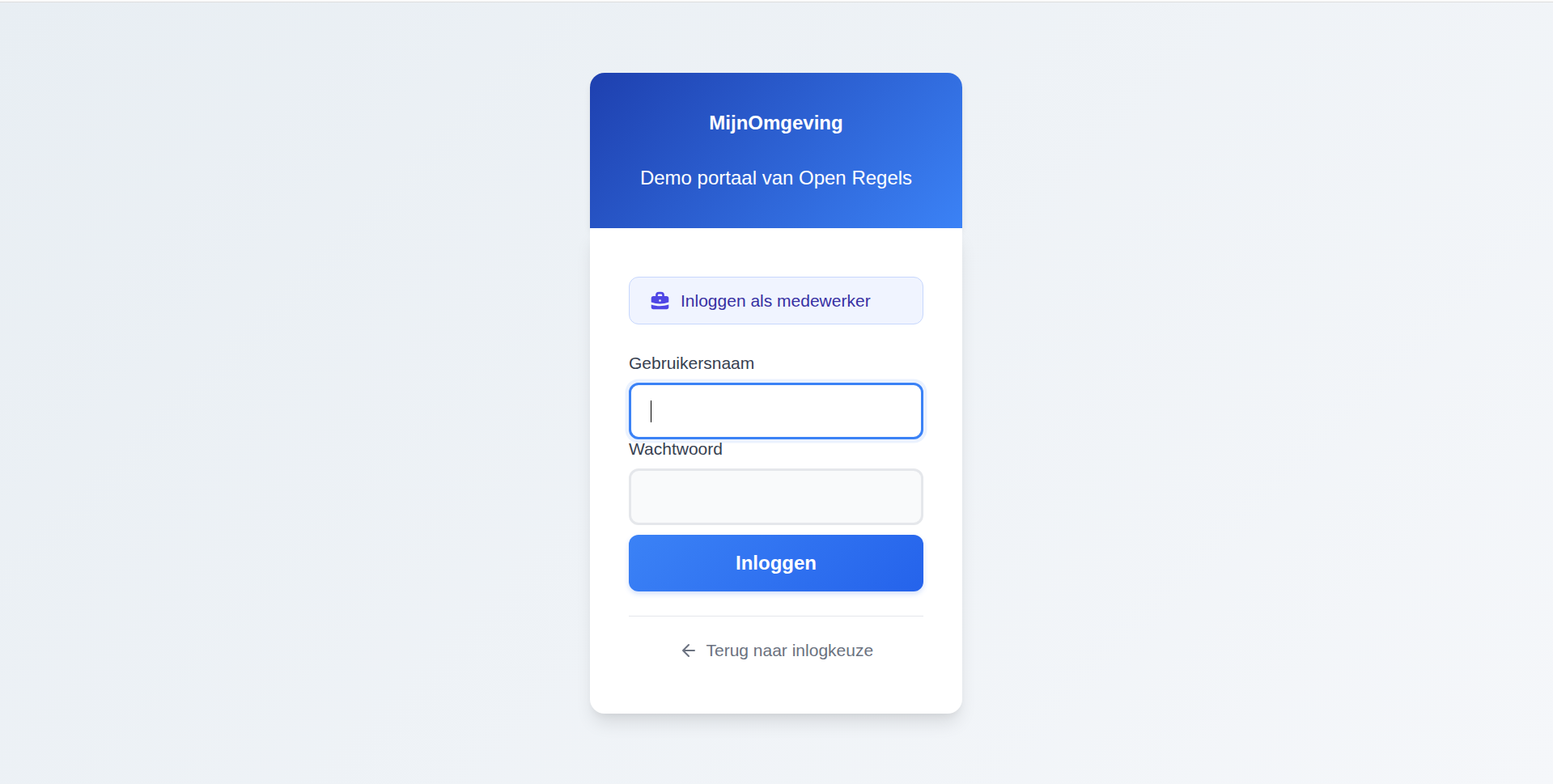

Screenshot: Keycloak Login — Caseworker

Keycloak native login with caseworker context banner

Step 4 — Enter credentials

Enter the Keycloak username and password for the caseworker account. Click Inloggen.

A "← Terug naar inlogkeuze" link is available below the login button to return to the landing page without completing login.

Step 5 — Token issuance

Keycloak issues a JWT with roles: ["caseworker"] and the caseworker's municipality attribute.

Example JWT payload (caseworker):

{
  "sub": "xyz789abc012",
  "name": "Petra van Dam",
  "preferred_username": "test-caseworker-utrecht",
  "municipality": "utrecht",
  "loa": "hoog",
  "realm_access": {
    "roles": ["caseworker"]
  },
  "aud": "ronl-business-api",
  "iss": "https://acc.keycloak.open-regels.nl/realms/ronl",
  "exp": 1708534800,
  "iat": 1708533900
}

Step 6 — Caseworker dashboard

The portal detects the caseworker role in the JWT and renders the caseworker dashboard. See Caseworker Workflow for what caseworkers can do once logged in.

Common behaviour

Multi-municipality support

The municipality claim in the JWT determines branding and data scope. The platform supports four municipalities:

Municipality Primary colour Citizen test user Caseworker test user
Utrecht Red test-citizen-utrecht test-caseworker-utrecht
Amsterdam Bright red test-citizen-amsterdam test-caseworker-amsterdam
Rotterdam Green test-citizen-rotterdam test-caseworker-rotterdam
Den Haag Blue test-citizen-denhaag test-caseworker-denhaag

Assurance levels (LoA) — citizen only

DigiD supports three assurance levels:

Level Dutch Method Use cases
low basis Username + password General information viewing
substantial midden Username + password + SMS Most government services
high hoog Username + password + DigiD app Sensitive data, financial transactions

If the token's loa is insufficient for a requested operation, the Business API returns:

HTTP/1.1 403 Forbidden

{
  "error": {
    "code": "LOA_INSUFFICIENT",
    "message": "This action requires assurance level 'substantial' or higher."
  }
}

Caseworker accounts are not subject to LoA enforcement — they authenticate with Keycloak-native credentials.

Token lifetime

  • Access token: 15 minutes, automatically refreshed while the session is active
  • SSO session idle timeout: 30 minutes of inactivity
  • SSO session maximum: 10 hours
  • Token is stored in memory only (never in localStorage)

Logging out

Click Uitloggen in the portal header. This calls Keycloak's end_session_endpoint, invalidates the SSO session, clears the in-memory token, and redirects to the landing page.

Troubleshooting

"Session expired" message

The SSO session timed out after 30 minutes of inactivity. Return to the landing page and log in again.

Redirect loop

Cause: Invalid redirect URI configuration in Keycloak.

Fix: Verify the ronl-business-api client in Keycloak Admin has:

Valid Redirect URIs: https://acc.mijn.open-regels.nl/*
Web Origins: +

"Terug naar inlogkeuze" requires two clicks

Cause: The /auth route (AuthCallback.tsx) is an intermediate step in the browser history. Navigating back once lands on /auth, which immediately redirects to Keycloak again.

Fix: The cancel link in login.ftl uses history.go(-2) to skip past /auth in a single click.

Wrong municipality shown after login

Cause: The user account has an incorrect municipality attribute in Keycloak.

Fix: In Keycloak Admin Console → Users → select the user → Attributes → set municipality to the correct value, then log out and back in.

Caseworker banner not showing

Cause: The __medewerker__ login_hint is not being passed, or the login.ftl template version on the server is outdated.

Fix: Verify that sessionStorage contains selected_idp = medewerker before /auth loads (check DevTools → Application → Session Storage). If the theme file is outdated, redeploy the theme and restart the Keycloak container (see Keycloak Deployment).
